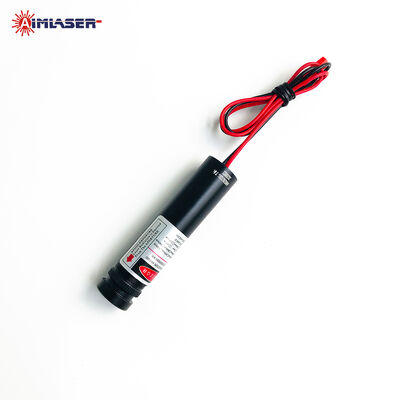

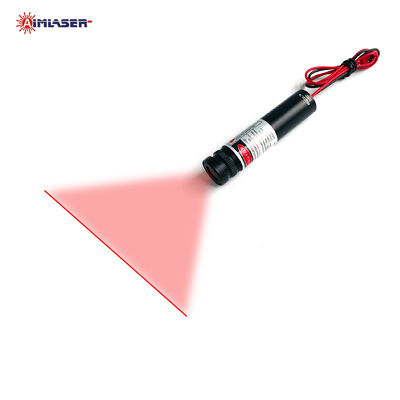

650nm 50mW 90% High Uniformity Line Laser Generator For Machine Vision 3D Scanning Industrial Camera
Product Details
| Product Name | Powell Lens Uniform Line Laser Module | Wavelength | 650nm |
|---|---|---|---|
| Line Width | ≤50um@150mm | Fan Angle | 110° |
| Operating Voltage | 3-24V DC | Output Power | ≤50.0mW |
| Case Material | Insulation Aluminum Black Anodized | Dimensions | 16x70mm |
| Driver Mode | CW, Analog Modulation, Digital Modulation, Computer Control | Optics | Powell Lens |
| Highlight | 650nm Machine Vision Laser,20mW Machine Vision Laser,Diode Laser Line Generator |
||
Product Description
650nm 50mW 90% High Uniformity Line Laser Generator For Machine Vision 3D Scanning Industrial Camera
Product Description
AIMLASER provides customized uniform line laser diode modules equipped with Powell lenses for consistent laser intensity and even light distribution. Customization options include wavelengths ranging from 405nm to 850nm, fan angles from 10° to 90°, and input voltages between 3V and 12V DC. These modules feature a compact design, narrow line width (as thin as 10µm), and stable, reliable performance.
These modules are widely used in machine vision systems, industrial robotics, 3D scanning, medical instruments, and surface defect detection, projecting thin collimated red laser lines for high-precision applications. The 650nm 20mW red line laser module also features adjustable focus, providing added flexibility for various tasks.
With high stability, narrow line width, uniform light distribution, and adjustment options, these laser modules deliver consistent and precise results in industrial automation, quality inspection, and scientific research.
Specifications
|
ITEMS |
PARAMENTERS |
|
Model Number |
Powell Lens Uniform Distribution Line Laser Diode Module |
|
Wavelength |
650nm |
|
Output Power |
≤50.0mW |
| Output Aperture | Φ3.0mm |
|
Line Width |
≤50um@100mm |
|
Fan Angle |
110° |
| Input Voltage | 3~24.0VDC |
| Working Current | <70mA |
| Driver Mode | CW, TTL, Analog Modulation, Digital Modulation |
| Dimensions | Φ12x45mm |
| Divergence | 0.3mrad |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constant Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Optics |
Powell Lens |
|
Material |
Aluminum Black Anodized (Insulation) |
|
Life Time |
10,000Hrs |
Features
- Compact size, narrow line width, and adjustable focus.
- High stability and reliability with long service lifetime.
- Equipped with a high-quality Powell lens for superior beam shaping performance.
- Utilizes original laser diodes from Arima Lasers, Osram, and Nichia, ensuring consistent quality and performance.
- Highly uniform laser line intensity distribution, providing excellent brightness consistency across the entire line.
- Customizable line width, fan angle, and output power to meet different application requirements.
- Compliant with RoHS, FDA, IEC, and SGS standards.
- One-year warranty and flexible OEM/ODM customization services available.
Applications
Industrial Vision & Inspection
- Machine Vision Systems
- Industrial Visual Measurement Systems
- Vision Cameras & Smart Cameras
3D Measurement & Scanning
- 3D Scanning Systems
- Laser Profilometers
- Laser Contour Scanners
Automation & Robotics
- Industrial Robot Vision Guidance
- Automated Visual Positioning Systems
Alignment & Positioning
- Laser Alignment Systems
- Laser Scribing & Positioning Equipment
