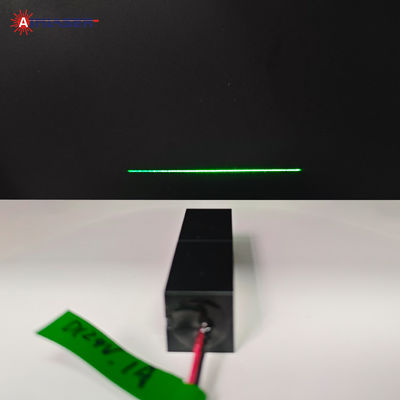

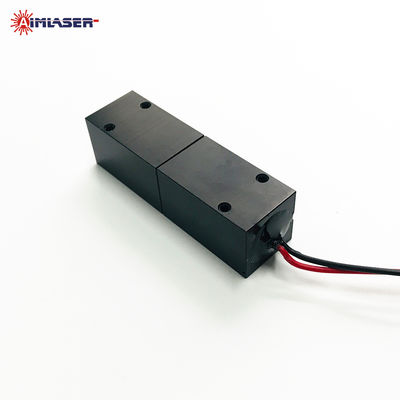

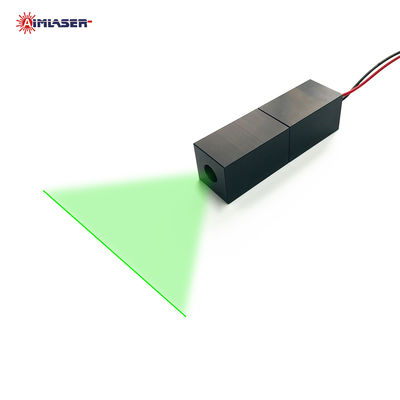

520nm 50mW Powell Lens Uniform Line Laser Module For Machine Vision Laser 3D Scanning Robot Automation System
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Well-Distributed Line Laser Module With Powell Lens | Wavelength | 532nm |
|---|---|---|---|
| Line Width | ≤30um@100mm | Fan Angle | 90° |
| Operating Voltage | 24V DC | Case Material | Insulation Aluminum Black Anodized |
| Life Span | 10,000 Hours | ||
| Highlight | 520nm Machine Vision Laser,Uniform Machine Vision Laser |
||
Product Description
Powell Lens High Uniform Line Width and Intensity Laser Module for 3D Robot Vision Laser Automation System
Product Description
AIMLASER's uniform line laser diode modules use a Powell lens to generate evenly distributed laser lines with high precision and stability. These modules' narrow linewidth laser beam, laser intensity and energy are high uniformly, making them suitable for machine vision, 3D scanning, laser profilometers, industrial robotics, and surface defect detection. Available wavelengths range from 405nm to 850nm, with output power and other specifications customizable to application needs.
The well-distribution line laser projectors feature laser diodes from Arima, Osram, and Nichia and comply with ROHS, FDA, IEC, and SGS standards. Ultrafine line widths can be 10µm, fan angles from 10° to 120°, focus can be fixed or focusable, and input voltages of 3V to 24V DC. Wavelengths include 405nm, 445nm, 450nm, 520nm, 635nm, 650nm, 660nm, 780nm, and 850nm, with output power 1mW-10W.
The AM520U50G2 is a Powell lens uniform distribution green line laser diode module, the maximum output power is 50mW at 520nm. Customizable solution is available for your requirements.
Specifications
|
ITEMS |
PARAMETERS |
|
Model Number |
Powell Lens Uniform Distribution Line Laser Diode Module |
|
Wavelength |
520nm |
|
Output Power |
50mW |
| Output Aperture | Φ5.0mm |
|
Line Width |
≤30um@100mm |
|
Fan Angle |
110° |
| Input Voltage | 24.0VDC |
| Working Current | <250mA |
| Driver Mode | CW, TTL Modulation, PWM Modulation, Analog Modulation |
| Dimensions | Φ70x20X20mm |
| Divergence | 0.5mrad |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Optics |
Powell Lens |
|
Material |
Aluminum Black Anodized (Insulation) |
|
Life Time |
≥10,000Hrs |
Features
1. Compact size, high stability and reliability.
2. Narrow and consistent, even distributed line width.
3. High-quality Powell lens and laser diode.
4. Long Lifetime and Ultra-lower Noise.
5. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
6. Conform to ROHS, FDA, IEC, SGS standards.
7. Provide one-year warranty and OEM customized solutions.
Applications
The 520nm 50mW green uniform distribution line laser diode modules with Powell lens are used in:
● Machine Vision Systems
● 3D Scanning Systems
● Laser Profilometers
● Laser Measuring Systems
● Laser Contour Scanners
● Laser Scribe Positioning Machines
● Machine Vision Products
● Industrial Visual Measurement Systems
● Machine Vision Cameras
● Industrial Robot Visual Guidance Systems
● Industrial Smart Cameras
● Automatic Equipment Visual Locating Systems
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
