Powell Lens Machine Vision Laser Inspection 520nm 30mW Focus Adjustable
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 520nm 30mW Powell Lens Uniform Line Laser Module | Wavelength And Output Power | 520nm ≤30.0mW |
|---|---|---|---|
| Line Width | ≤50um@150mm | Fan Angle | 30° |
| Divergence | 0.3mrad | Operating Voltage | 3-12V DC |
| Case Material | Aluminum Black Anodized (Insulation) | Dimensions | 14x55mm |
| Life Span | 10,000Hrs | Warranty | 1 Year |
| Highlight | Machine Vision Laser 520nm,Machine Vision Laser 30mW |
||
Product Description

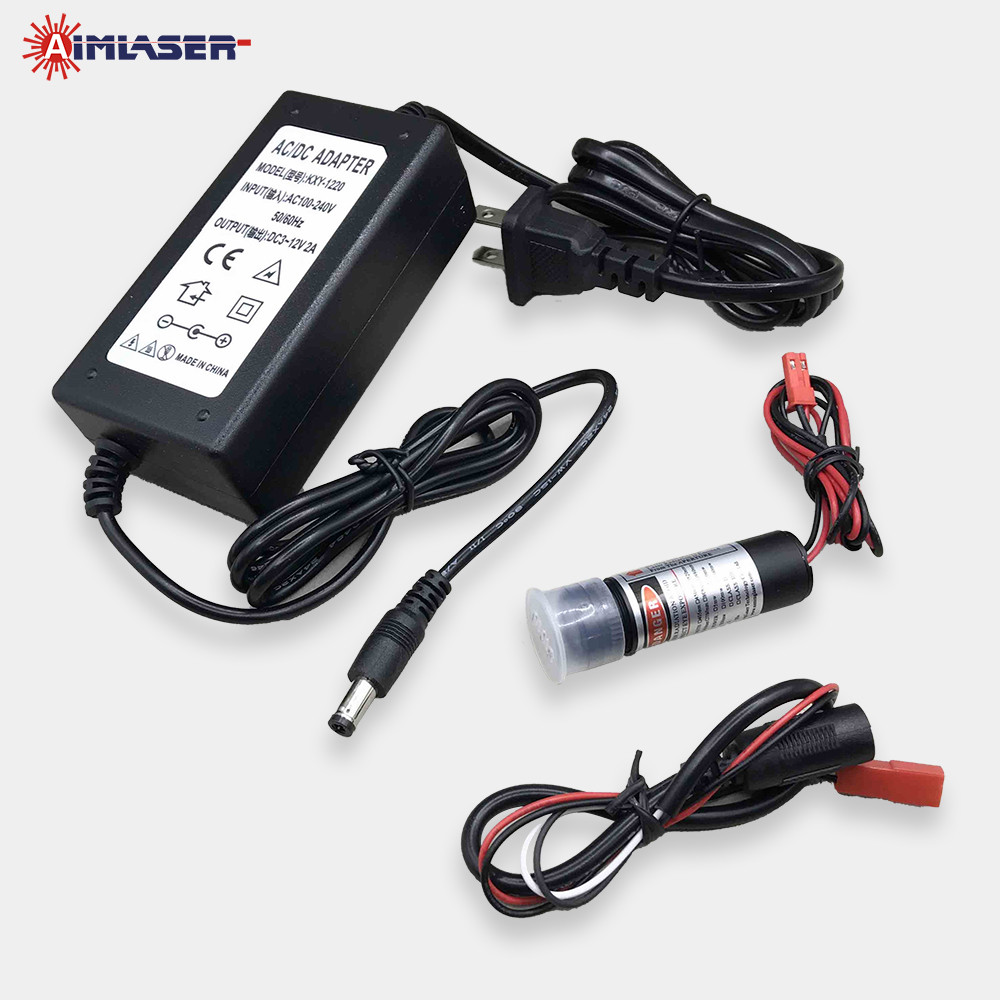

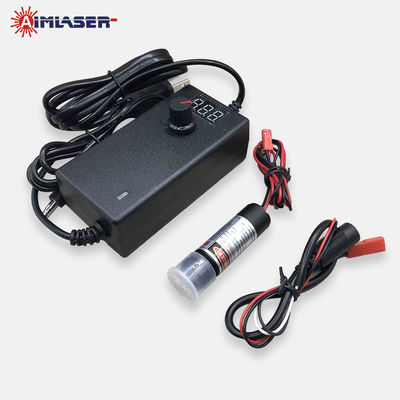

Powell Lens Well Distributed Uniform Line Laser Module 520nm 30mW Focus Adjustable for Machine Vision Inspection
Product Description
AIMLASER ( Aiming Laser Technology Co., Ltd. ) provides customized Uniform Line Laser Diode Modules, which have a well-distributed laser beam and energy.
Featuring High Quality Powell Lens and a Compact Design, these modules offer a Narrow Line Width, High Stability and Reliability, Long Lifetime and performance under Complex Conditions. The well distributed line laser is the ideal laser source in Laser Profilometer, 3D Smart Camera, Surface Defect Detections, Machine Vision System, Industrial Robotics and 360° Pipeline Inspections etc.
The AM520U30G1 is a green line laser module subassembly with Collimated Beam. The maximum laser output power is 30mW at 520nm. Ensuring uniform power distribution. They are customizable to meet your specific specifications and requirements. The thinnest line can be 10um; fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also various from 3V to 12V DC.
Specifications
Features
1. Compact Size, Narrow Line Width, High Stability and Reliability.
2. Long Lifetime and Complex Condition Design.
3. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
4. Conform to ROHS, FDA, IEC, SGS standards.
5. Provide One year warranty and customized solutions.
Applications
The 520nm 30mW Powell Lens Uniform Line Laser Diode Modules are used in:
|
● 3D Vision System |
● Laser Scanning System |
|
● Laser Profilometer |
● Laser Measuring Profilometer |
|
● Laser Contour Scanner |
● Laser Scribe Positioning Machines |
|
● Machine Visual Products |
● Industrial Visual Measurement System |
|
● Machine Vision Cameras |
● Industrial Robot Visual Guidance System |
| ● Industrial Smart Cameras | ● Auto Equipment Visual Positioning System |
Payment & Shipment
You can pay by T/T, PayPal, Western Union, etc.
Most orders are delivered within 15-20 days.
FedEx, DHL, UPS and other are supported for your preference.
FAQ
Q1: How can I ensure the products have no quality issues?
A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.
Q2: What can be customized? Do you support required solutions?
A: Yes, we can customize wavelength, output power, beam size, driver mode, working voltage and housing dimensions and more according to your requirements.
Q3: Do you have other wave length Powell Lens Uniform Line Laser Modules available?
A: Yes, we can customize 405nm, 450nm, 520nm, 635nm, 650nm, 660nm, 780nm, 808nm, 830nm, 850nm, purple, violet, blue, green, red, infrared uniform line lasers.
Q4: Do you have focus adjustable beam uniformly distributed laser source?
A: Line thickness fixed and focus Adjustable uniform line laser diode modules are available.
Q4: What are the driver modes customized?
A: CW or Pulse (by TTL/Analogue Modulation).
