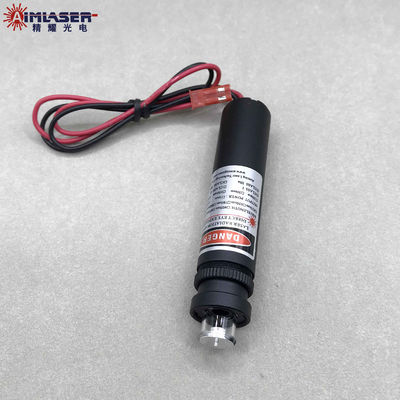

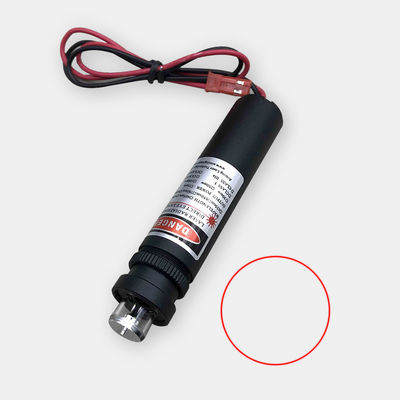

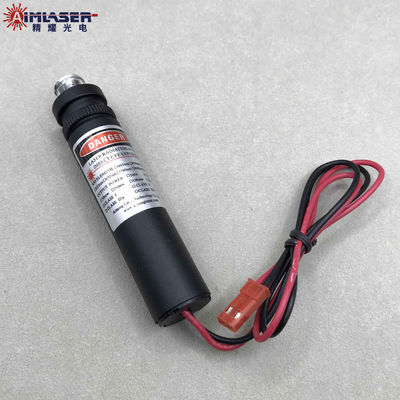

650nm 50mW Red Line Laser Projector 360 Degree For Pipeline Defect Detection

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM6500C50G2
Minimum Order Quantity 1
Price USD $20-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 360 Degree Red Uniform Line Laser Diode Module Wavelength 650nm
Fan Angle 360° Line Width ≤1mm@500mm
Operating Voltage 3-12V DC Output Power ≤50.0mW
Case Material Insulated Aluminum Black Anodized Size 16x55mm
Customized Support OEM, ODM Life Span 10,000 Hours
Warranty 1 Year
Highlight

Red Line Laser Projector

,

650nm Line Laser Projector

Leave a Message
Product Description

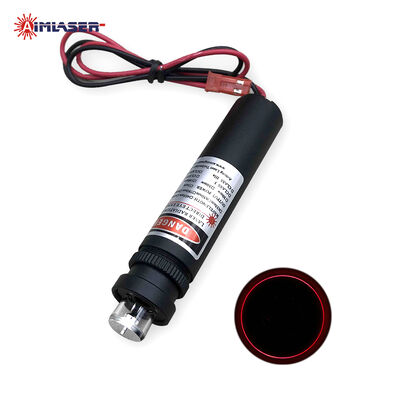

360 Degree 650nm 50mW Uniform Distribution Red Line Laser Projector for 3D Scanner and Pipeline Defect Detection



Product Description



AIMLASER offers customized red and green 360-Degree Uniform Line Laser Modules designed for industrial applications. These modules are available with various output powers, line widths, and dimensions. The circular line projector can produce square, rectangular, circular, or other irregular shapes to meet specific spatial requirements.



Equipped with a high-quality coated 360° cone lens, the uniform line laser projector delivers thin, clear, and evenly distributed laser lines. The laser intensity, light, beam, and energy are consistent across the projection area. The thinnest line width can reach 10µm, with wavelengths ranging from 405nm to 850nm and input voltages adjustable between 3V and 12V DC.



These compact, high-stability well distributed line laser generators are easy to operate and ensure reliable performance. Manufactured in our ISO9001:2008-certified facility, they meet ROHS, FDA, IEC, and SGS standards. They are widely used in 360° pipeline inspection, defect detection, laser leveling systems, laser alignment tools, measurement instruments, and industrial 3D scanning systems.



The 650nm 50mW 360° Red Uniform Distribuyion Line Laser Diode Module features an adjustable focus for added flexibility. Please contact us for customized solutions tailored to your needs.

360 Degree 650nm 50mW Uniform Distribution Red Line Laser Projector for 3D Scanner and Pipeline Defect Detection360 Degree 650nm 50mW Uniform Distribution Red Line Laser Projector for 3D Scanner and Pipeline Defect Detection

Specifications



ITEMS

PARAMENTERS

Model Number

360° Uniform Distribution Line Laser Diode Module

Wavelength

650nm

Output Power

≤50mW

Line Width

≤1mm@500mm

Fan Angle

360°

Input Voltage 3~12.0VDC
Working Current <100mA
CDRH Class Class IIIb
Divergence 0.3mrad
Dimensions Φ16x55mm

Circuit control

Auto Constanct Current (ACC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Driver Mode CW, TTL, Analog Modulation, Digital Modulation

Working Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 80℃

Material

Aluminum Black Anodized (Insulation)

Life Time

≥10,000Hrs



Features



1. Compact size, narrow line width.

2. High stability and reliability, long lifetime.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide one-year warranty and customized solutions.



Applications



520nm 30mW 360° Green Uniform Line Laser Diode Module applications:



● Machion Vision Laser

● Robot Vision 3D Laser Detection Scanner
● Pipeline Inspections
● 360 Laser Scanner

Pipeline Defects inspection
Industrial Measurement and Inspection
Road and Rail Inspection
structured Light
Laser Alignment
Laser Leveling System
Concentricity Locating





Trade Terms



1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us



A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.narrow line width
