Thermal Imaging Monocular Scope 384x288 14X Digital Zoom WiFi Hunting Camera Photo Video Recording Thermal Rifle Sight
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | AM-IRT02 Thermal Imaging Monocular Scope | Detector Type | Uncooled Vanadium Oxide |
|---|---|---|---|
| Spectral Range | 8–14 μm | Sensor Resolution | 384×288(12μm) |
| MRTD (1f0) | ≤550 MK | Display Type | OLED |
| Display Resolution | 1024×768 | Image Modes | White-hot, Black-hot, Red-hot, Pseudo-color, Outline |
| Field Of View (FOV) | 10.5°×7.9° | Eyepiece Magnification | 14X |
| Highlight | WiFi Thermal Imaging Monocular Scope,Hunting Camera Thermal Imaging Monocular Scope |
||
Product Description

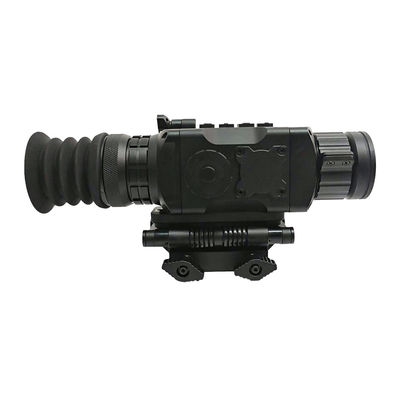

AM-IRT02 Thermal Imaging Monocular Scope 384x288 14X Digital Zoom WiFi Hunting Camera Photo Video Recording Thermal Rifle Sight
AM-IRT02 Infrared Thermal Imaging Scope
AIMLASER specializes in high-performance optics for military, tactical, and hunting applications. The AM-IRT02 Thermal Imaging Scope is a weapon-mounted monocular sight featuring silent, shutter-free calibration technology, ensuring zero noise operation to prevent exposure. Built with a 384×288 (12μm) high-sensitivity VOx infrared sensor, it delivers clear, high-contrast thermal imaging for 24/7 all-weather reconnaissance. The scope includes a 905nm laser rangefinder, displaying real-time distance measurements directly on the high-resolution OLED screen for enhanced target accuracy.
Designed for rapid deployment, the AM-IRT02 features a fast startup time, allowing instant use in critical situations. The OLED display (1024×768) provides rich colors, fine details, and adjustable contrast/brightness settings. Users can switch between multiple imaging modes, including White Hot, Black Hot, Red Hot, Edge, and Pseudo-Color. The scope also integrates hotspot tracking, electronic compass, inclinometer, and picture-in-picture (PIP) mode for superior situational awareness.
Built for rugged tactical environments, the AM-IRT02 is shockproof (1500G), rain-resistant, and highly durable, making it suitable for military operations, law enforcement, hunting, and outdoor surveillance. Additional features include manual blind pixel correction, customizable reticles, OLED color temperature adjustment, video recording, and PAL/NTSC switching. The anti-glare eyecup design ensures stealthy operation, minimizing light leakage. With its robust construction and cutting-edge thermal imaging technology, the AM-IRT02 is a top-tier choice for professionals seeking high-performance infrared optics.
Display Video:
Features

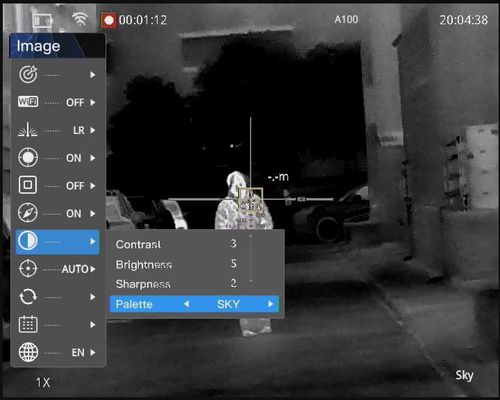

● High-Definition Imaging & Smart Tracking
With 384×288 resolution and a 1024×768 OLED display, the AM-IRT02 thermal sight provides crystal-clear thermal visuals across 8 imaging modes (White Hot, Black Hot, Iron Red, etc.). Its unique hotspot tracking feature automatically locks onto high-temperature targets for rapid identification.
● Laser Rangefinding
Powered by dual 18650 lithium batteries (8+ hours runtime), the 905nm laser rangefinder offers precise distance measurement from 30m to 1300m, with data overlay for real-time decision-making.
● Shutter-Free Design for Silent Operation
The innovative shutter-free technology eliminates mechanical noise, ensuring complete stealth during covert operations.
● Digital Compass & Ballistic Calculator
Built-in compass aids navigation, while the ballistic solver automatically adjusts aim points based on rangefinding data.
● Extreme Environment Resilience
Operating in temperatures from -40℃ to +55℃ and withstands 1500G impacts, the IP-rated waterproof design ensures reliability in harsh conditions.
● PiP, Recording & Wi-Fi Streaming
Picture-in-Picture mode enables multi-angle monitoring, while one-touch photo/video capture and Wi-Fi connectivity (via the IR-CAM app) allow remote viewing and recording control.
● Customizable Reticle & AI Enhancement
Store 10 firearm profiles with 6 reticle styles in 3 colors (White/Yellow/Black), while AI-driven dead pixel compensation ensures flawless imaging.
Specifications
| Parameter | Specification |
| Model | AM-IRT02 Infrared Thermal Imaging Scope |
| Detector Type | Uncooled vanadium oxide |
| Spectral Range | 8–14 μm |
| Resolution | 384×288 (12μm) |
| MRTD (1f0) | ≤550 mK |
| Display Type | OLED |
| Display Resolution | 1024×768 |
| Objective Focal Length | 25mm F1.0 |
| Field of View (FOV) | 10.5°×7.9° |
| Focus Range | 10m to ∞ |
| Recognition Distance | 700m (standing human) |
| Eyepiece Magnification | 14X |
| Eyepiece Diopter Adjustment | ±5D |
| Reticle Styles | 5 types |
| Image Modes | White-hot, Black-hot, Red-hot, Pseudo-color, Outline |
| Digital Zoom | 1x/2x/4x |
| Laser Wavelength | 905nm |
| Laser Range | 30m–1300m |
| Battery Type | 18650 Li-ion ×2 |
| External Video Output | PAL analog |
| Operating Time | ≥8 hours |
| Wi-Fi | Supported |
| Photo/Video Capture | Supported |
| Operating Temperature | -40°C to +55°C |
| Weight | ≤820g |
| Dimensions | 200×116×95mm |
Applications

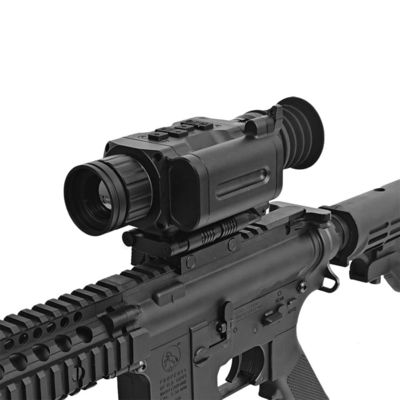

The AM-IRT02 thermal scope is a rugged, rail-mounted optics system engineered for professional operators, hunters, and security personnel who demand high-performance infrared imaging in dynamic environments.
✔ Defense & Law Enforcement – Designed for night operations, counter-terrorism, reconnaissance, and border patrol, providing real-time thermal imaging and long-range target acquisition.
✔ Hunting & Tactical Shooting – Enhances wildlife detection and tracking with high-resolution thermal imaging, a built-in laser rangefinder, and a customizable reticle system for precise aiming.
✔ Security & Perimeter Defense – Ideal for private security teams and facility protection, offering thermal detection in complete darkness and Wi-Fi live streaming for remote monitoring.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 15 - 20 days after deposit payment.
4) FOB Shipping Port: Xi'an or Hong Kong, China
5) Warranty: One year.
Our Services
A. All products come with a one-year warranty.
B. Provide OEM & ODM services, support customized for your requirement.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Cooperates with Glock, Bushnell, and other famous brands.
F. Strong design and production capabilities.
