Industrial Dot And Line Diode Laser Modules 405nm - 1050nm Pulse TTL Modulation
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dot Laser Diode Module | Wavelength | 405-1050nm |
|---|---|---|---|
| Output Power | 1- 500mW | Laser Mode | CW Or Pulse |
| Beam Size | ≤6.0mm@10m | Case Material | Black Anodized Aluminum (Insulation) |
| Dimensions | 15x60mm | Life Span | 8,000Hrs |
| Warranty | 1 Year | ||
| Highlight | Industrial Diode Laser Modules,Diode Laser Modules 1050nm,Dot Laser Module 405nm |
||
Product Description

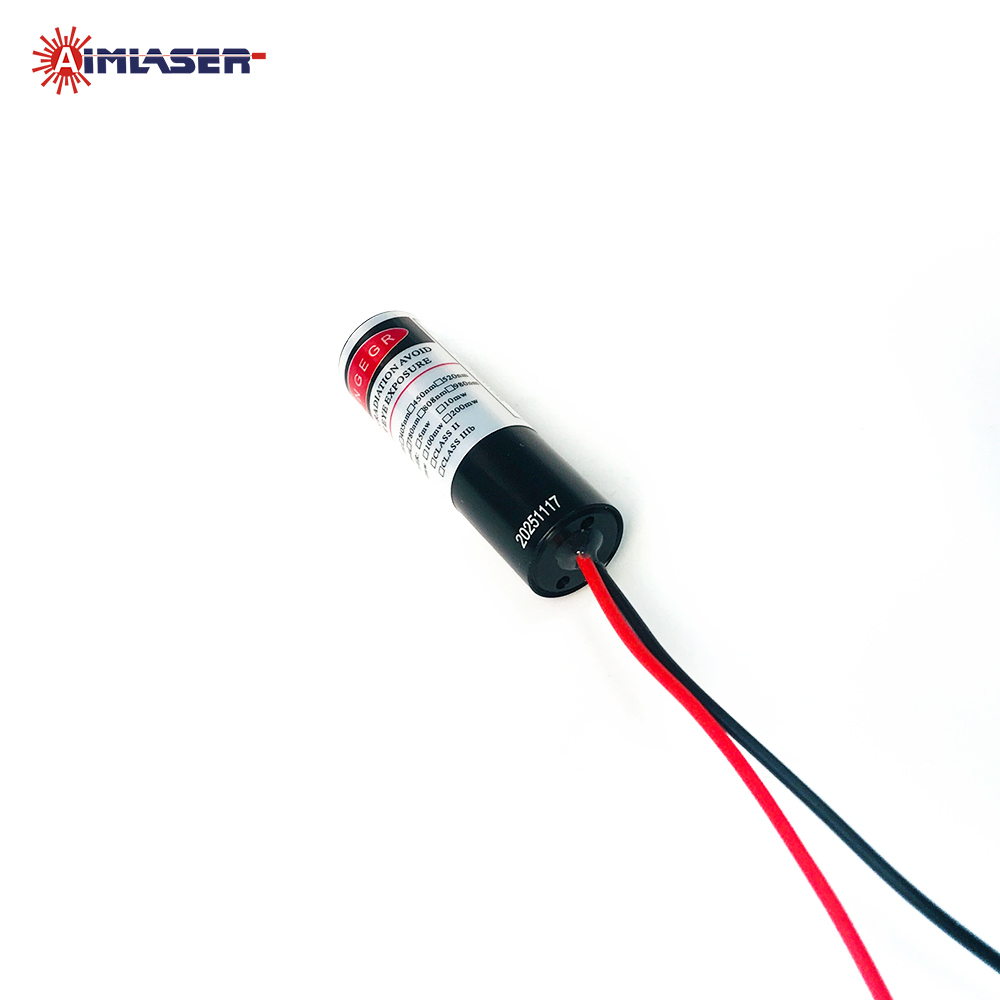

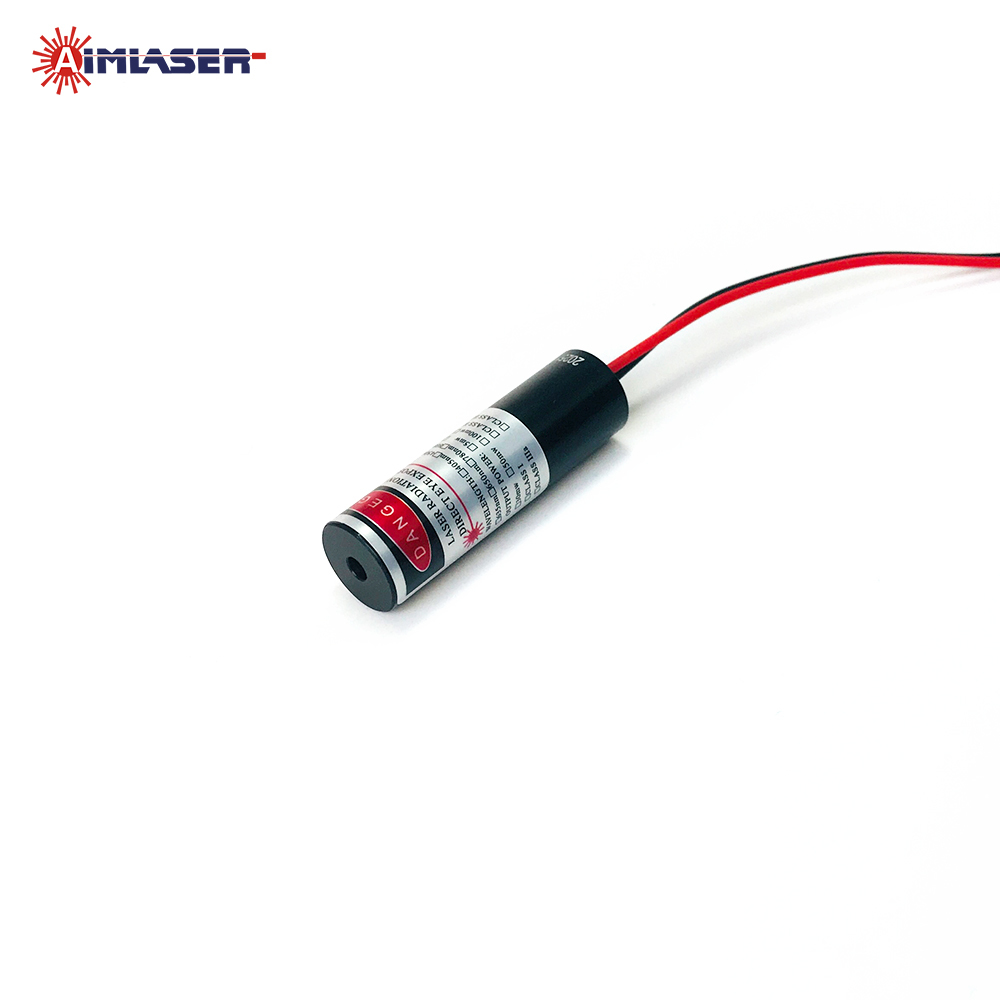

Custom Industrial Dot and Line Laser Diode Module 405nm-1050nm Pulsed TTL Modulated Focus Adjustable
Product Description
AIMLASER manufactures customized blue, green, red, and infrared(IR) dot laser diode modules, with wavelengths 405nm 520nm 635nm 650nm 780nm 850nm, output power 1-500mW, various beam sizes and dimensions, operate input voltage between 2V and 5V DC. Our modules utilize optical glass lenses and high-quality laser diodes, 1-year warranty and customized solutions are provided.
Our laser modules feature compact size, high stability, reliability, and excellent beam quality. These laser makers are widely used in industrial and medical laser instruments, precision positioning, gas detection, alignment, positioning, measurement, and scanning equipment.
The AM520D30G2 is a green dot laser module that features a collimated beam. It provides a maximum output power of 30mW at a wavelength of 520nm and is focusable. We provide continuous and pulse lasers (/TTL/Analogue Modulation/Digital Modulation)
Specifications
|
ITEMS |
SPECIFICATIONS |
|
Product Name |
Green Dot Laser Diode Module |
|
Wavelength |
520nm |
| Output Power | ≤30mW |
|
Laser Mode |
CW or Pulsed |
|
Beam Size |
≤6.0mm@10m |
|
Divergence |
0.4mrad |
|
Lens |
Optical Glass Lens |
|
Operating Current |
<120mA |
|
Operating Voltage |
3-5V DC |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Power Control (APC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Dimensions |
Φ15x60mm (APC Inside) |
| Housing Material | Black Anodized Aluminum |
| Life Span | 8,000Hrs |
Features
1. Compact size, low cost, lightweight, low consumption.
2. Good quality beam, high precision and stability.
3. Easy to use, long lifetime.
4. Conform to ROHS, FDA, IEC, and SGS standards.
5. Using original laser diodes from Arima, Osram, Nicha, and branded chips.
Applications
The 520nm 30mW green dot laser diode modules are used for:
● Scientific and Research Applications: Scientific research, laboratory instruments, and laser scanning systems.
● Precision Alignment and Positioning: Laser alignment systems, laser positioning systems, and laser surveying instruments.
● Industrial and Medical Uses: Medical laser instruments, laser detecting instruments, and OEM instrumentation.
● Military and Security: Laser aiming devices and military equipment.
● Consumer and Recreational Products: Nightwear sporting products and consumer products.
● Automotive Applications: Automotive interior ambient lighting systems.
Package
We provide anti-static bags and cartons, which provide excellent protection.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China.
5) Warranty: One year,
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
FAQ
Q1: What items can be customized?
A: Yes, we can customize wavelength, output power, beam size, working voltage, housing dimensions, and more for your needs.
Q2: What are the laser driver modes?
A: Continous or Pulsed lasers(by TTL/Analogue Modulation/Digital Modulation).
Q3: How can I ensure the products have no quality issues?
A: They are produced in our ISO 9001-certified factory, and our products are certified by the FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one-year warranty. We respond proactively to any quality issues.
