30mW 532nm DPSS Diode Laser Modules For Biological Detection Sciences Instruments
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diode-Pumped Solid-State (DPSS) Laser Modules | Laser Display | Visible Green Cross Beam |
|---|---|---|---|
| Laser Mode | CW | Beam Size | ≤3mm@5m |
| Case Material | Black Anodized Aluminum | Dimensions | 14x70mm |
| Life Span | 8,000Hrs | Warranty | 1 Year |
| Highlight | 532nm Diode Laser Modules,DPSS Diode Laser Modules,30mW DPSS Laser Module |
||
Product Description

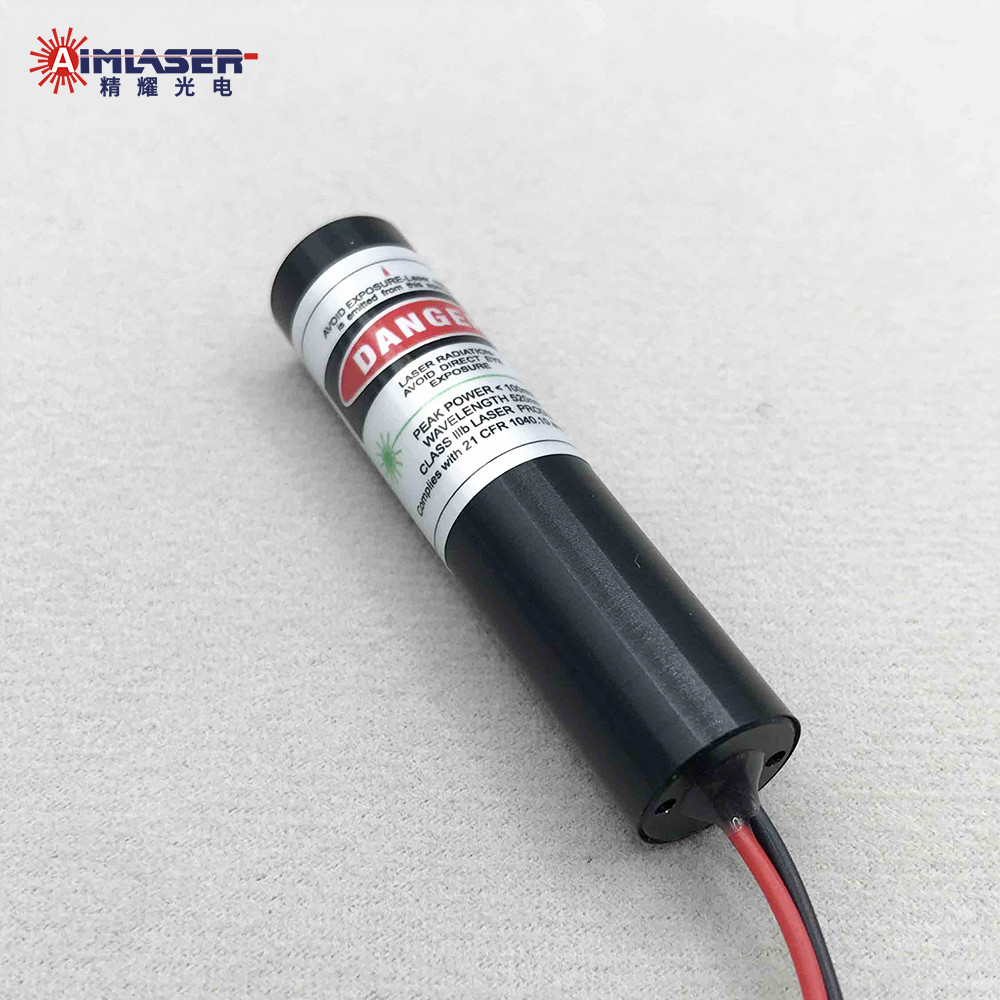

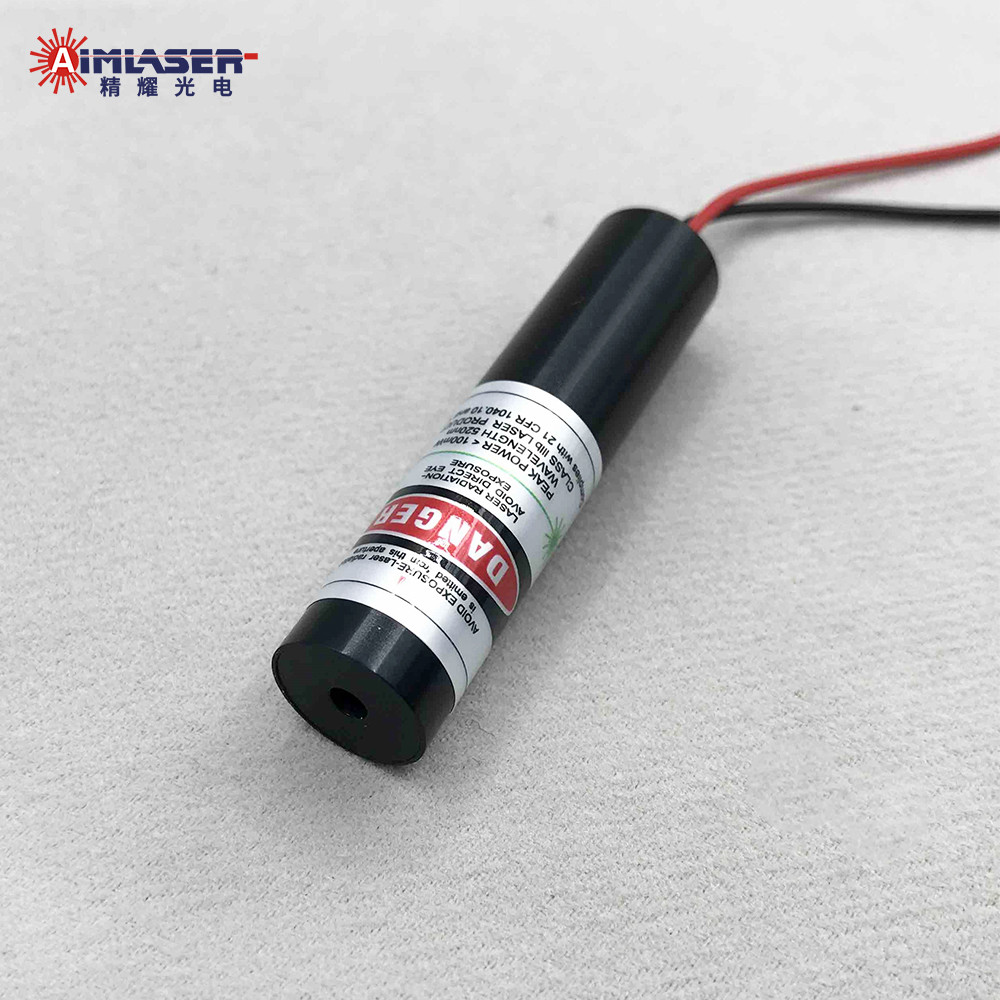

Diode Pumpled Solid State DPSS Green 532nm 30mW Laser Modules for Biological Detection Sciences Instruments
Product Description
AIMLASER offers customized Diode-Pumped Solid-State (DPSS) Laser Modules with wavelengths 532nm in green color. These modules have output power ranging from 1mW to 200mW. The dot size, line width, fan range, working voltage, and dimensions are customizable to meet specific requirements.
Our DPSS laser modules feature a compact design, high signal-to-noise ratio, excellent beam quality, and long-term power stability. Equipped with premium optical glass lenses and laser diodes from top manufacturers such as Arima, Osram, and Nichia, they comply with ROHS, FDA, IEC, and SGS standards, ensuring a long operational lifetime.
These DPSS laser modules are ideal laser sources for precision biological detection, scientific instruments, industrial inspection, and environmental monitoring, providing reliable and stable performance for demanding applications.
Specification
| ITEM | SPECIFICATIONS |
| Model Number | DPSS Green Laser Module |
| Wavelength | 532nm |
| Output Power | ≤30.0mW |
| Laser Mode | CW |
| Beam Size | ≤8mm@10m |
| Divergence | 0.5mrad |
| Optics | Optical Glass Lens |
| Operating Current | <380mA |
| Operating Voltage | 3VDC |
| CDRH Class | Class IIIa |
| Circuit control | Auto Power Control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | 0℃ to 45℃ |
| Storage Temperature | -20℃ to 70℃ |
| Dimensions | Φ12x50mm (Driver Inside) |
| Housing Material | Black Anodized Brass |
| Life Span | 8,000Hrs |
Features
1. Compact size, and long lifetime.
2. high precision and stability, high brightness.
3. High-quality optical glass lens, good quality beam.
4. Easy mounting, convenient adjustment.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Using original Laser Diodes from Arima, Osram, Nicha, and branded chips.
7. Provide One year warranty and customized solutions.
Applications
The 532nm 30mW diode pumped solid state (DPSS) laser modules are used for:
● Biological detection
● Scientific instruments
● Medical laser applications
● Laser scanning systems
● Industrial inspection
● Environmental monitoring
● Laser alignment systems
● Optical research
● Precision measurement
● OEM instrumentation
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China.
5) Warranty: 1 year.
Why Choose Us
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha, and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC, and GB standards.
F. Strong design and production capabilities, partners of famous brands.
