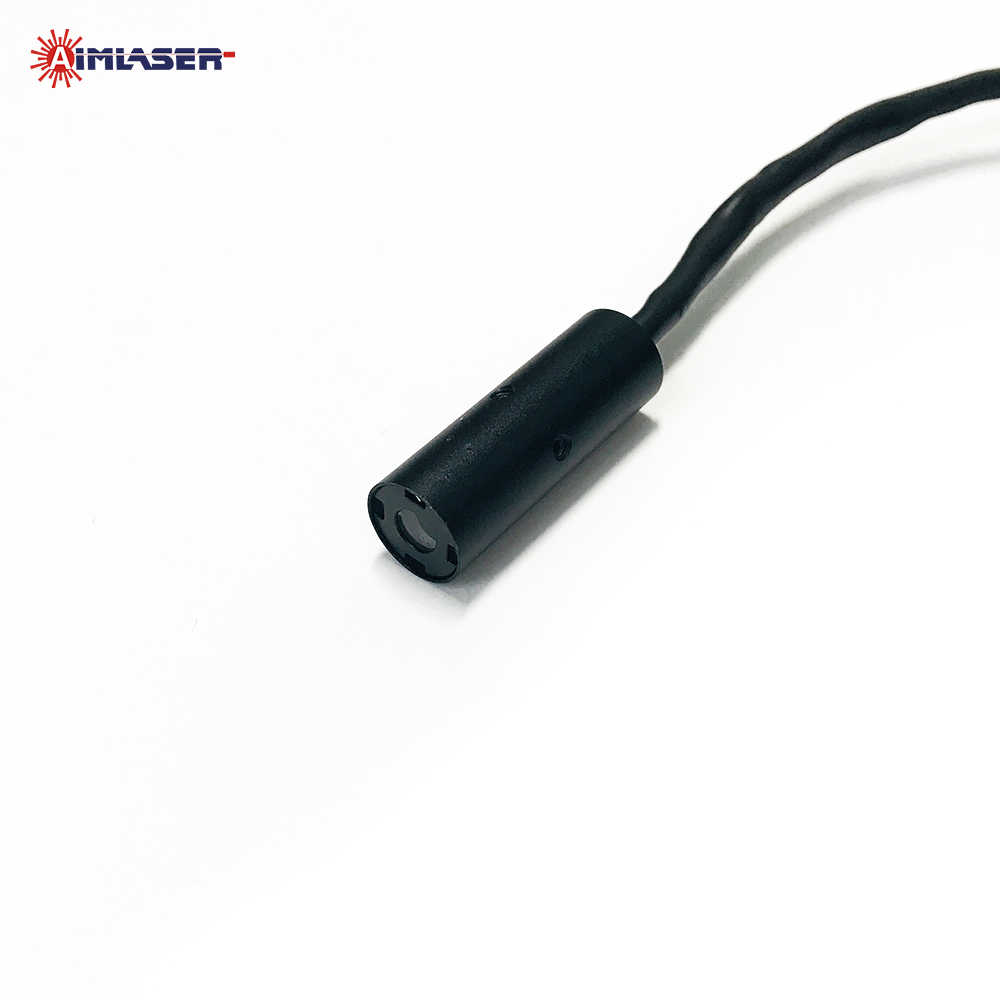

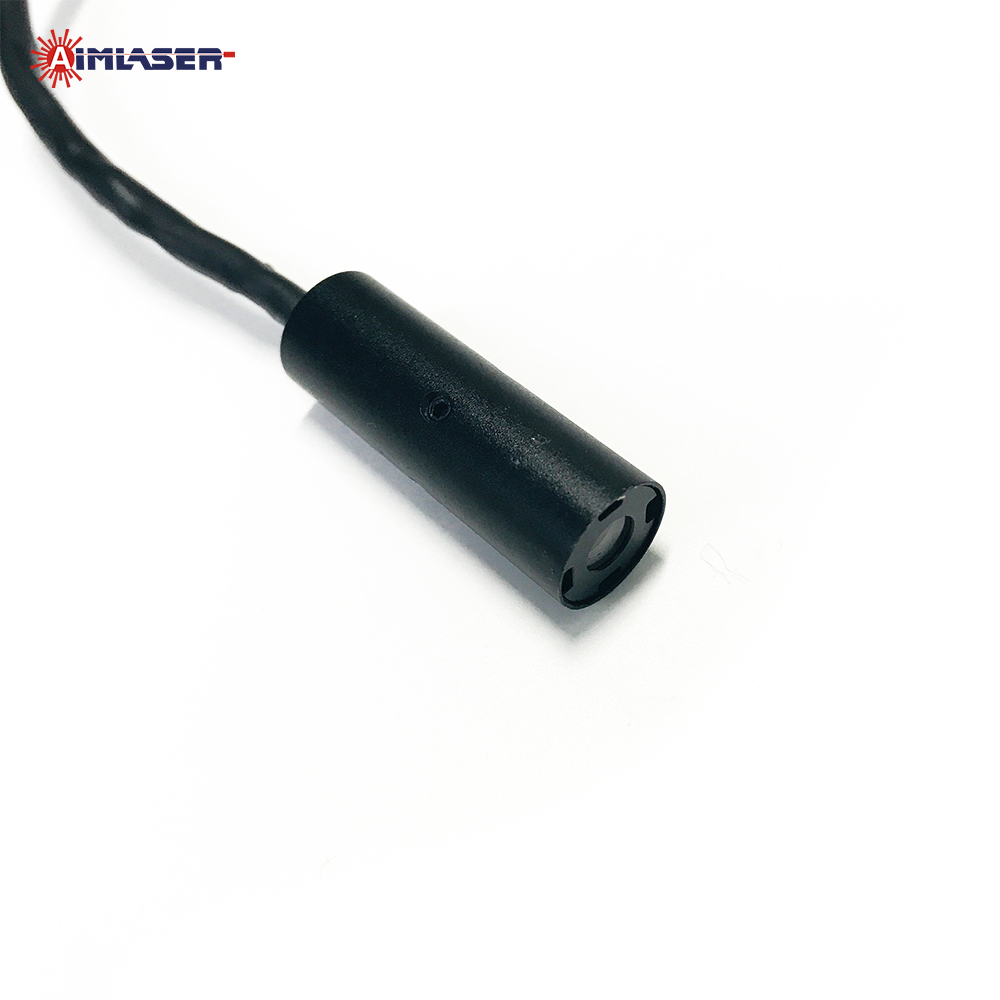

Powell Lens Uniform Distribution Line Laser Module 405 - 850nm With TTL Modulation
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Powell Lens Uniform Line Laser Module | Wavelength | 405~850nm (Custom) |
|---|---|---|---|
| Line Width | ≤30um@80mm | Fan Angle | 10°~120° (Custom) |
| Operating Voltage | 3-24V DC (Custom) | Case Material | Insulation Aluminum Black Anodized |
| Life Span | 10,000 Hours | ||
| Highlight | Uniform Line Laser Module,Line Laser Module 850nm |
||
Product Description
Uniform Distribution Line Laser Module Powell Lens TTL Modulation for Industrial Machine Vision 3D Scanning Quality Inspection
Product Description
AIMLASER offers customized uniform line laser diode modules with consistent line width, laser intensity, energy, and beam quality. The line width can be as fine as 10µm, with fan angles ranging from 10° to 90°. Available wavelengths include 405nm, 445nm, 450nm, 520nm, 532nm, 635nm, 650nm, 660nm, 780nm, and 850nm, with output power 1-400mW. Modules support input voltages from 3V to 24V DC and are available with fixed or adjustable focus, tailored to meet specific application requirements.
Our Uniform Line Laser Diode Module with Powell Lens design delivers well-distributed, narrow laser lines with exceptional stability and reliability. This compact, easy-to-operate module serves as a laser source for precise line positioning and guidance, making it ideal for applications such as machine vision systems, laser profilometers, 3D smart cameras, industrial robotics, 3D scanning, surface defect detection, and 360° pipeline inspection.
Specifications
|
ITEMS |
PARAMETERS |
|
Model Number |
Powell Lens Well Distributed Line Laser Diode Module |
|
Wavelength |
405nm~850nm |
|
Output Power |
5mW~400mW |
| Output Aperture | Φ1.5mm~5.0mm |
|
Line Width |
≤20um@60mm, ≤30um@80mm, ≤50um@150mm, ≤100um@300mm |
|
Fan Angle |
10°~120° |
| Input Voltage | 3~24.0VDC |
| Working Current | <500mA |
| Driver Mode | CW or Pulse(TTL, Analog Modulation, Digital Modulation) |
| Dimensions | Φ12x35mm, Φ12x45mm, Φ16x55mm, Φ16x70mm |
| Divergence | 0.2~0.8mrad |
|
CDRH Class |
Class I II IIIa IIIb |
|
Circuit control |
Auto Constanct Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Optics |
Powell Lens |
|
Material |
Aluminum Black Anodized (Insulation) |
|
Life Time |
≥10,000Hrs |
Features
1. Compact size, long lifetime.
2. Narrow line width, high stability and reliability.
3. Using high quality powell lens.
4. Using original Laser Diodes from Arima, Osram, Nicha, and branded chips.
5. Conform to ROHS, FDA, IEC, and SGS standards.
6. Provide a one-year warranty and OEM customized solutions.
Applications
The Powell lens uniform distribution line laser diode modules are used in:
● Machine Vision Systems
● 3D Scanning Systems
● Laser Profilometers
● Laser Measuring Systems
● Laser Contour Scanners
● Laser Scribe Positioning Machines
● Machine Vision Products
● Industrial Visual Measurement Systems
● Machine Vision Cameras
● Industrial Robot Visual Guidance Systems
● Industrial Smart Cameras
● Automatic Equipment Visual Locating Systems
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
