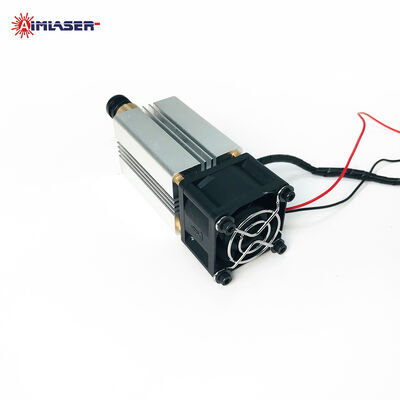

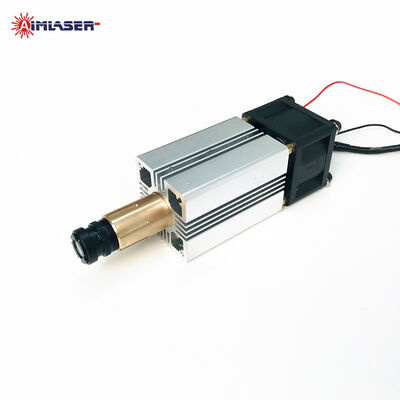

High Power Focusable Powell Lens Uniform Line Laser Module 405nm 450nm 520nm 635nm 660nm 1W - 10W
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Powell Lens Well-Distributed Line Laser Module | Wavelength | 405nm, 450nm, 520nm, 635nm, 660nm |
|---|---|---|---|
| Line Width | ≤200um@100±10cm | Fan Angle | 90° |
| Operating Voltage | 24V DC | Laser Drive Mode | CW, TTL, PWM, Analogue Modulation |
| Life Span | 10,000 Hours | ||
| Highlight | Uniform Line Laser Module 405nm,Uniform Line Laser Module 445nm |
||
Product Description
High Power Focusable Powell Lens Uniform Line Laser Module 405nm 450nm 520nm 635nm 660nm 1W-10W
Product Description
The Uniform Line Laser Diode Module with Powell Lens design projects well-distributed, narrow laser lines with high stability and reliability. The uniformly distributed line laser subassembly with a collimated beam serves as the laser source, maker, generator, and projector for precise line positioning and locating guidance. It is compact, easy to operate, and widely used in machine vision systems, laser profilometers, 3D smart cameras, industrial robotics, 3D scanning, surface defect detection, and 360° pipeline inspection.
AIMLASER provides customized high-power uniform line laser diode modules, with uniform distribution of laser intensity, even constant linewidth. The finest line width can reach 10µm, with fan angles ranging from 10° to 120°, and available wavelengths include 405nm, 445nm, 450nm, 520nm, 532nm, 635nm, 650nm, 660nm, 780nm, 850nm, 980nm with different output power, input voltages from 3V to 24V DC. Focus is either fixed or adjustable.
Specifications
|
ITEMS |
PARAMENTERS |
|
Model Number |
Powell Lens Uniform Distribution Line Laser Diode Module |
|
Wavelength |
450nm |
|
Output Power |
3W |
| Output Aperture | Φ5.0mm |
|
Line Width |
≤200um@100±10cm |
|
Uniformity |
≥90% |
|
Fan Angle |
90° |
| Input Voltage | 24.0VDC |
| Driver Mode | CW, ( TTL, Analog Modulation, Digital Modulation Optional) |
| Dimensions | 40x40x130mm |
| Divergence | 1mrad |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constant Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Optics |
Powell Lens |
|
Material |
Aluminum Black Anodized (Insulation) |
|
Life Time |
10,000Hrs |
Features
1. High power, high stability and reliability.
2. Compact size, narrow line width, long lifetime.
3. High uniformly linewidth using high quality Powell lens.
4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
5. Conform to ROHS, FDA, IEC, SGS standards.
6. Provide one-year warranty and OEM customized solutions.
Applications
The powell lens uniform distribution line laser diode modules are used in:
|
● Machine Vision System |
● 3D Scanning System |
|
● Laser Profilometer |
● Laser Measuring Profilometer |
|
● Laser Contour Scanner |
● Laser Scribe Positioning Machines |
|
● Machine Visual Products |
● Industrial Visual Measurement System |
|
● Machine Vision Cameras |
● Industrial Robot Visual Guidance System |
| ● Industrial Smart Cameras | ● Automatic Equipment Visual Locating System |
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
