520nm 5mW Laser Beam Expanders For Remote Laser Orientation Positioning And Illumination

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number ALBE520D05G1
Minimum Order Quantity 1
Price USD $50-100
Packaging Details Anti-static bag, Carton
Delivery Time 10-20 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 520nm 5mW Green Laser Beam Expander Wavelength And Output Power 520nm ≤5.0mW
Beam Size ≤55mm@1500m Divergence ≤ 0.5mrad
Operating Voltage 90-250V AC Case Material Black Anodized Aluminum
Working Temperature -10℃ To 50℃ Life Span 10,000Hrs
Warranty 1 Year
Highlight

5mW Laser Beam Expanders

,

520nm Laser Beam Expanders

Leave a Message
Product Description

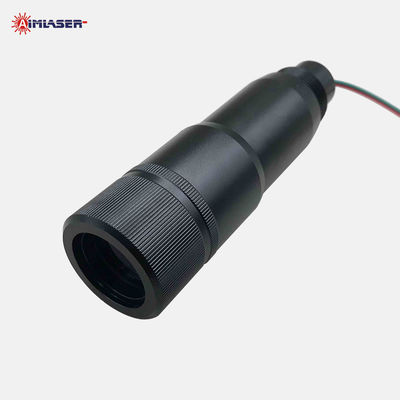

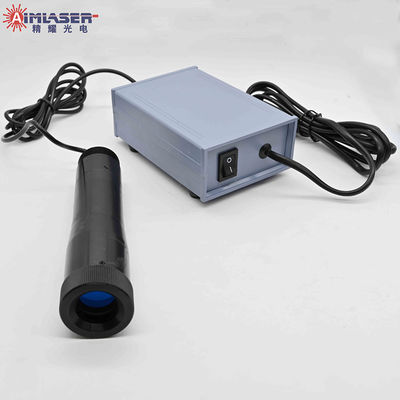

Laser Beam Expander Green Uniform 520nm 5mW Laser for Remote Laser Orientation Positioning and Illumination



Product Description




AIMLASER (Aiming Laser Technology Co., Ltd.) provides Red and Green Laser Beam Expanders or Laser Designators with adjustable focus. The zoom beam expander is used in systems with a long beam path to keep the beam collimated or to vary the laser beam sizes.


Main application fields are for mining area, highway, railway, tunnel, bridge, high building and pipe installation's laser orientation, positioning and alignment.


The 650nm 5mW Green Laser Beam Expander is a green laser beam expander with adjustable focus. The maximum laser output power is 5.0mW at 650nm.



If you need customize solutions tailored to your specific needs—including wavelength, output power, beam size, working ditance and housing dimensions—please contact us.



Laser Beam Expander Green Uniform 520nm 5mW Laser for Remote Laser Orientation Positioning and IlluminationLaser Beam Expander Green Uniform 520nm 5mW Laser for Remote Laser Orientation Positioning and Illumination



Specifications




ITEMS

SPECIFICATIONS

Model Number

Green Laser Beam Expander

Wavelength

520nm

Output Power

≤5.0mW

Laser Mode

CW

Beam Size

≤55mm@1500m

Line Length

10m@5m

Optics

Optical Glass Lens

Operating Current

<200mA

Operating Voltage

90-250V AC

CDRH Class

Class IIIb

Circuit control

Auto Power Control (APC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-20℃ to 60℃

Dimensions

Φ42x154mm

Case Material

Black Anodized Aluminum

Life Span

10,000Hrs



Features




1. High collimated uniform laser beam.

2. High reliability and stability, long lifetime.

3. 1500m long-distance, minimal dispersion.

4. High strength,wide operating temperature range.

4. Conform to ROHS, FDA, IEC, SGS standards.

6. ONE year warranty and customized solutions.



Applications




The 520nm 5mW Green Laser Beam Expanders are used in:



● Mining industry, highway, tunnel, railway, bridge, high building and pipe installation's laser orientation, long distance positioning and alignment, industrail machine, measurement system, scientific experiment, display application, laser scanning, spectral absorbers, interferometry, and remote sensing(remote pointing, remote positioning and remote illumination).



Package




They are usually packaged in anti-static bags and cartons, which provides excellent protection.



Payment & Shipment




You can pay by T/T, PayPal, Western Union, etc.

Most orders are delivered within 15-20 days.

FedEx, DHL, UPS and other are supported for your preference.

520nm 5mW Laser Beam Expanders For Remote Laser Orientation Positioning And Illumination 2



FAQ




 Q1: How can I ensure the products have no quality issues?

  A: We have the ISO 9001 certified factory, and our products are certified by FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one year warranty. We respond proactively to any quality issues.



 Q2: What can be customized? Do you support required solutions?

 A: Yes, we can customize wavelength, output power, beam size, distance, working voltage and housing sizes and more according to your requirements.



 Q3: Do you have red laser beam expanders?

 A: Yes, we customize both green line laser beam expanders, such as 520nm and 532nm, and red line laser beam designators, such as 635nm, 650nm, and 660nm.



 Q4: Can I get the FDA certification and quality report?

 A: Yes, we will provide them for you.





Why Choose Us




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.
