AM-IRT02 Rail Mounted Infrared Thermal Imaging Monocular Scope With Laser Rangefinding For Day And Night Vision Outdoor Hunting
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | AM-IRT02 Thermal Monocular | Detector Type | Uncooled Vanadium Oxide |
|---|---|---|---|
| Spectral Range | 8–14 μm | Sensor Resolution | 384×288(12μm) |
| MRTD (1f0) | ≤550 MK | Display Type | OLED |
| Display Resolution | 1024×768 | Objective Focal Length | 25mm F1.0 |
| Field Of View (FOV) | 10.5°×7.9° | Eyepiece Magnification | 14X |
| Highlight | Laser Rangefinding Thermal Imaging Monocular Scope,Outdoor Hunting Thermal Imaging Monocular Scope |
||
Product Description
Infrared Thermal Imaging Monocular Scope with Built-in Laser Rangefinder for Day and Night Vision Outdoor Hunting Tactical Digital Optics

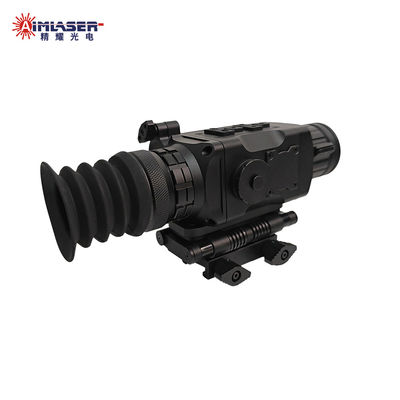

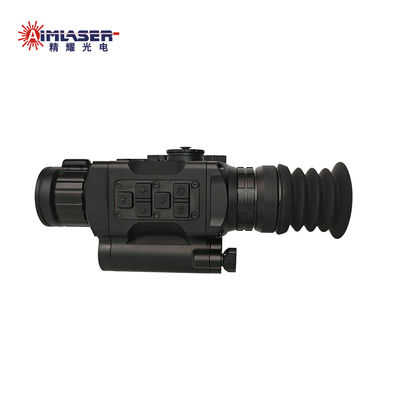

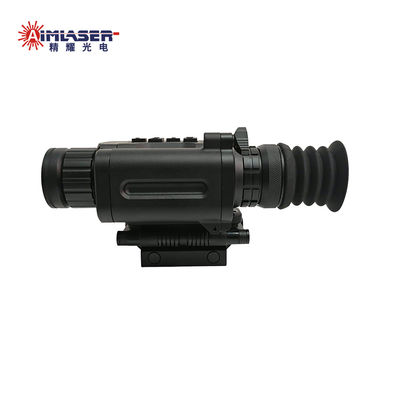

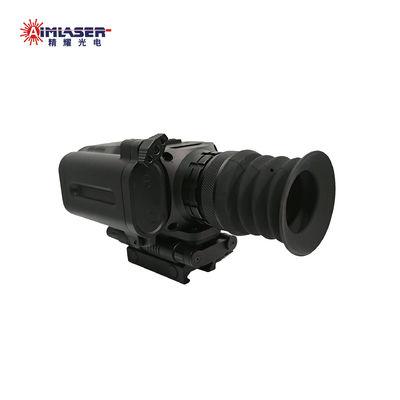

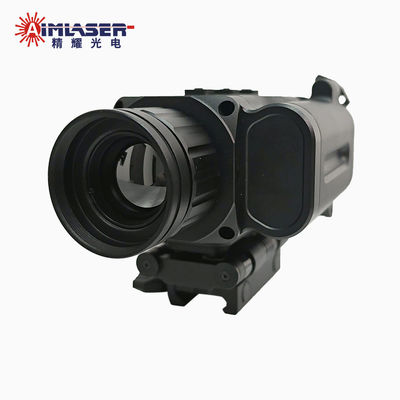

AM-IRT02 Infrared Thermal Imaging Scope
The AM-IRT02 Thermal Scope, integrating thermal imaging and laser rangefinding capabilities, sets a new standard for military reconnaissance, outdoor exploration, security operations, and specialized missions. Equipped with a 12μm vanadium oxide (VOx) uncooled detector and patented non-shutter correction technology, this device delivers exceptional sensitivity, stability, and stealth, enabling 24/7 all-weather surveillance.
Display Video:
Features
● High-Definition Imaging & Smart Tracking
With 384×288 resolution and a 1024×768 OLED display, the AM-IRT02 thermal sight provides crystal-clear thermal visuals across 8 imaging modes (White Hot, Black Hot, Iron Red, etc.). Its unique hotspot tracking feature automatically locks onto high-temperature targets for rapid identification.
● Laser Rangefinding
Powered by dual 18650 lithium batteries (8+ hours runtime), the 905nm laser rangefinder offers precise distance measurement from 30m to 1300m, with data overlay for real-time decision-making.
● Shutter-Free Design for Silent Operation
The innovative shutter-free technology eliminates mechanical noise, ensuring complete stealth during covert operations.
● Digital Compass & Ballistic Calculator
Built-in compass aids navigation, while the ballistic solver automatically adjusts aim points based on rangefinding data.
● Extreme Environment Resilience
Operating in temperatures from -40℃ to +55℃ and withstands 1500G impacts, the IP-rated waterproof design ensures reliability in harsh conditions.
● PiP, Recording & Wi-Fi Streaming
Picture-in-Picture mode enables multi-angle monitoring, while one-touch photo/video capture and Wi-Fi connectivity (via the IR-CAM app) allow remote viewing and recording control.
● Customizable Reticle & AI Enhancement
Store 10 firearm profiles with 6 reticle styles in 3 colors (White/Yellow/Black), while AI-driven dead pixel compensation ensures flawless imaging.
Specifications
| Parameter | Specification |
| Model | AM-IRT02 Infrared Thermal Imaging Scope |
| Detector Type | Uncooled vanadium oxide |
| Spectral Range | 8–14 μm |
| Resolution | 384×288 (12μm) |
| MRTD (1f0) | ≤550 mK |
| Display Type | OLED |
| Display Resolution | 1024×768 |
| Objective Focal Length | 25mm F1.0 |
| Field of View (FOV) | 10.5°×7.9° |
| Focus Range | 10m to ∞ |
| Recognition Distance | 700m (standing human) |
| Eyepiece Magnification | 14X |
| Eyepiece Diopter Adjustment | ±5D |
| Reticle Styles | 5 types |
| Image Modes | White-hot, Black-hot, Red-hot, Pseudo-color, Outline |
| Digital Zoom | 1x/2x/4x |
| Laser Wavelength | 905nm |
| Laser Range | 30m–1300m |
| Battery Type | 18650 Li-ion ×2 |
| External Video Output | PAL analog |
| Operating Time | ≥8 hours |
| Wi-Fi | Supported |
| Photo/Video Capture | Supported |
| Operating Temperature | -40°C to +55°C |
| Weight | ≤820g |
| Dimensions | 200×116×95mm |
Applications
The AM-IRT02 thermal scope is a rugged, rail-mounted optics system engineered for professional operators, hunters, and security personnel who demand high-performance infrared imaging in dynamic environments.
✔ Defense & Law Enforcement – Designed for night operations, counter-terrorism, reconnaissance, and border patrol, providing real-time thermal imaging and long-range target acquisition.
✔ Hunting & Tactical Shooting – Enhances wildlife detection and tracking with high-resolution thermal imaging, a built-in laser rangefinder, and a customizable reticle system for precise aiming.
✔ Security & Perimeter Defense – Ideal for private security teams and facility protection, offering thermal detection in complete darkness and Wi-Fi live streaming for remote monitoring.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 15 - 20 days after deposit payment.
4) FOB Shipping Port: Xi'an or Hong Kong, China
5) Warranty: One year.
Our Services
A. All products come with a one-year warranty.
B. Provide OEM & ODM services, support customized for your requirement.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Cooperates with Glock, Bushnell, and other famous brands.
F. Strong design and production capabilities.
