AM-R1 Open Rifle Red Dot Sight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | AM-R1 Rifle Open Red Dot Sight | Reticle Patterns | Red Dot/Red Circle/Red Dot & Circle |
|---|---|---|---|
| Construction | 7075-T6 Aluminum Alloy | Brightness Adjustment | 9 Levels For Day Time & 2 Levels For Night Vision |
| Click Adjustment Range | ±40MOA (Elevation & Windage) | Battery | 1xCR1632 |
| Battery Life | ≥10000Hrs (Medium Brightness In Continuous Work) | Protection Grade | IP67 Grade Waterproof And Dustproof |
| Shockproof | 1000G | Warranty | 1 Year Warranty |
| Highlight | Rifle Red Dot Sight Scope,Red Dot Sight Scope Shockproof |
||
Product Description

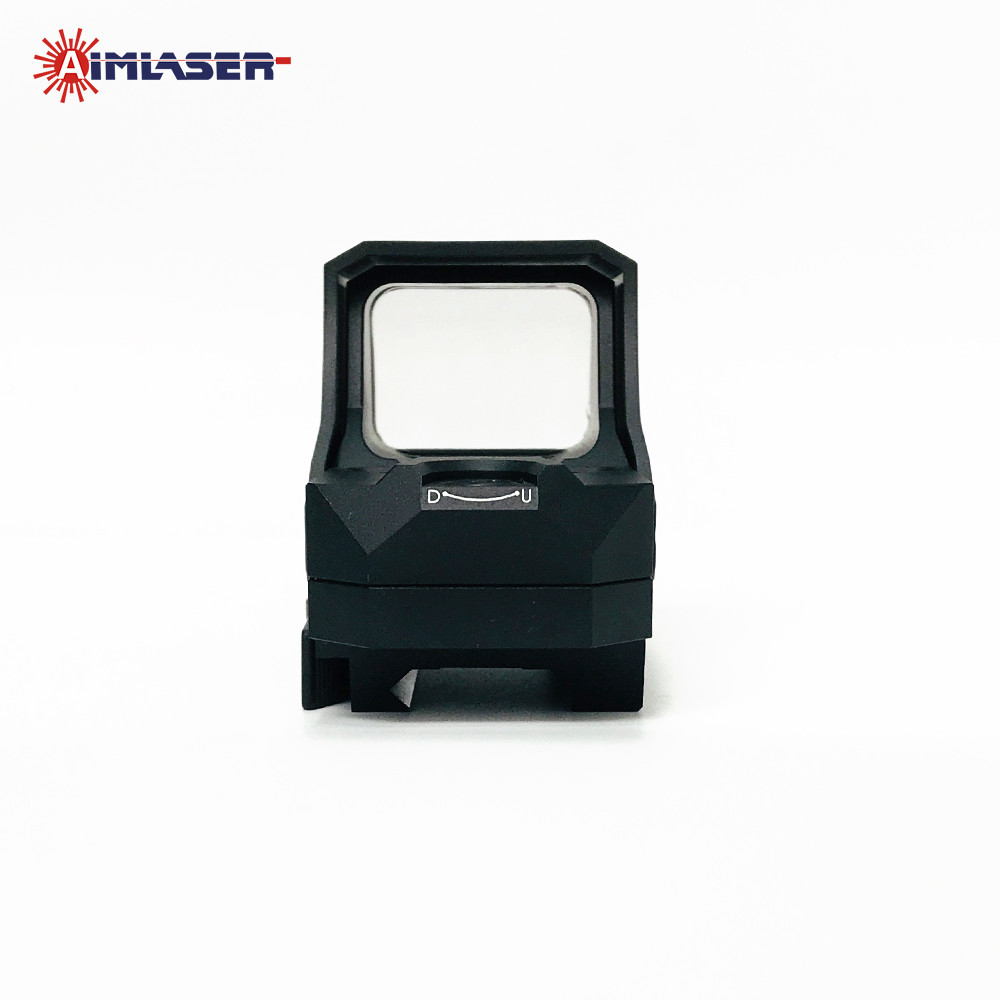

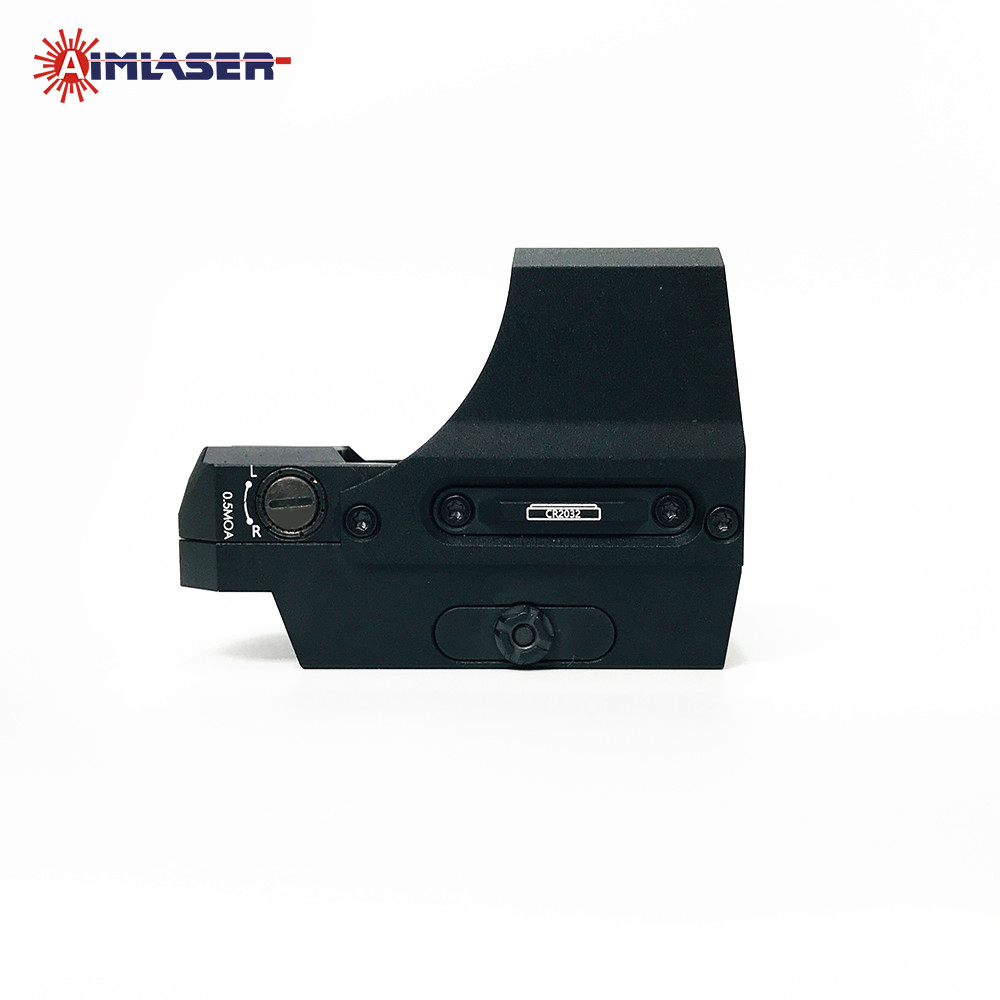

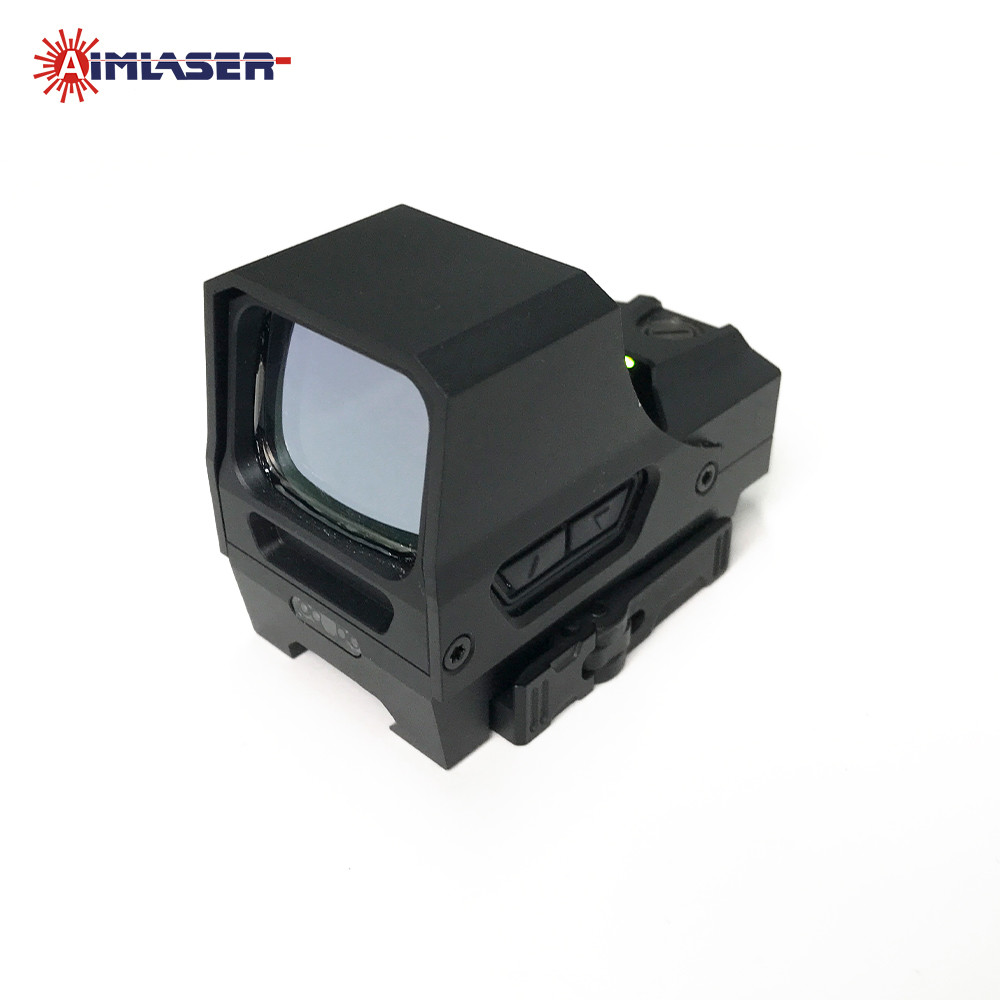

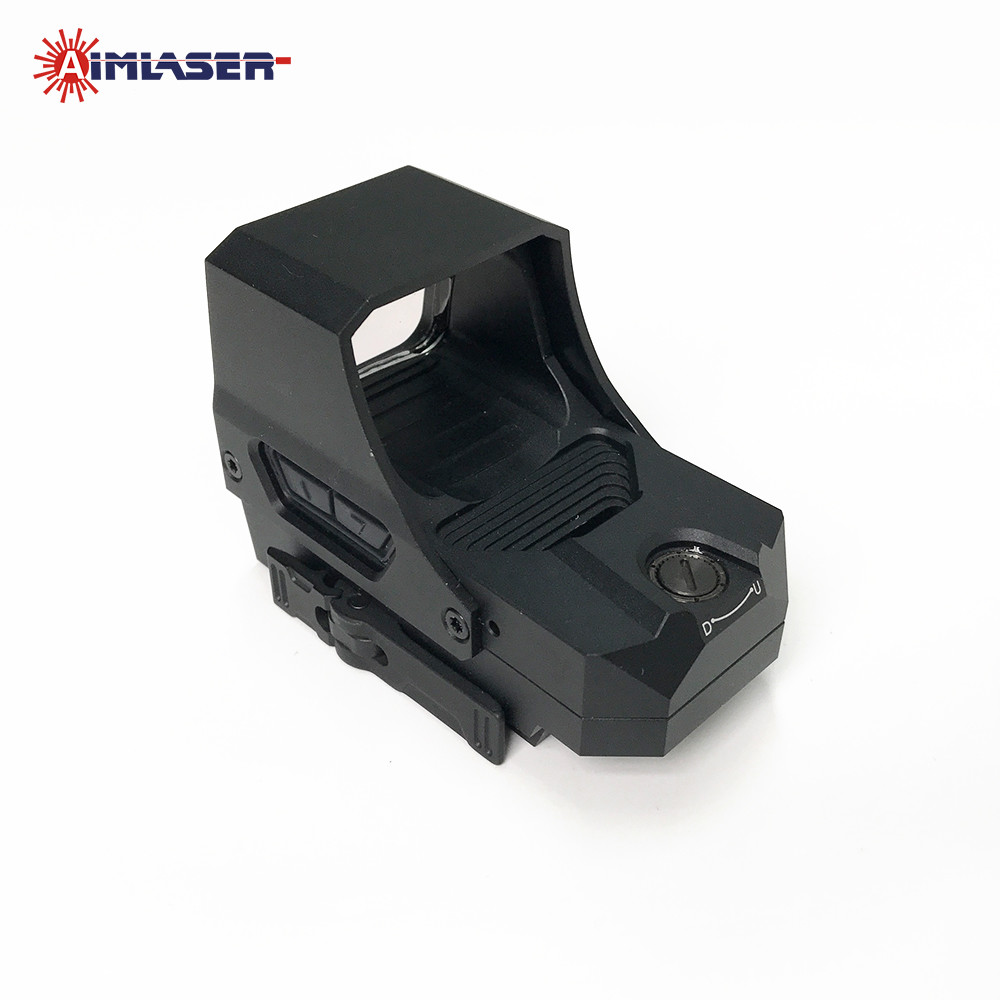

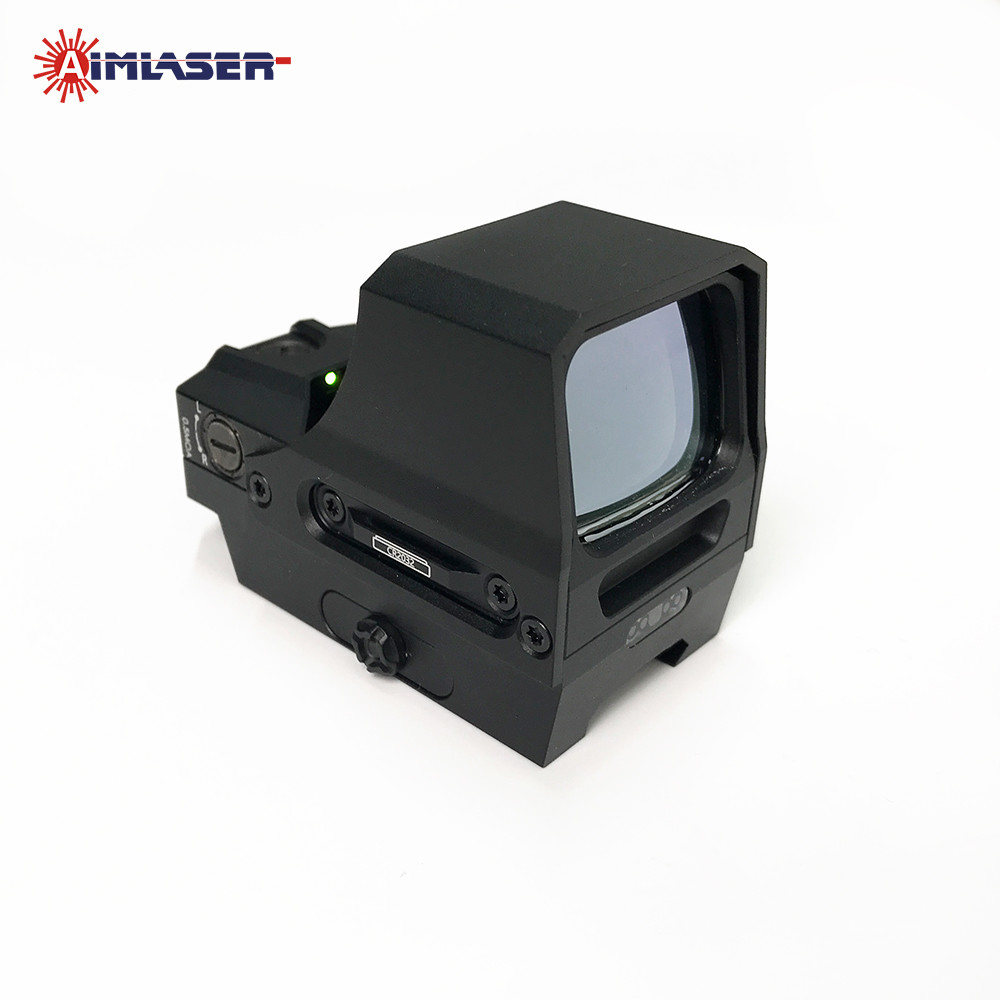

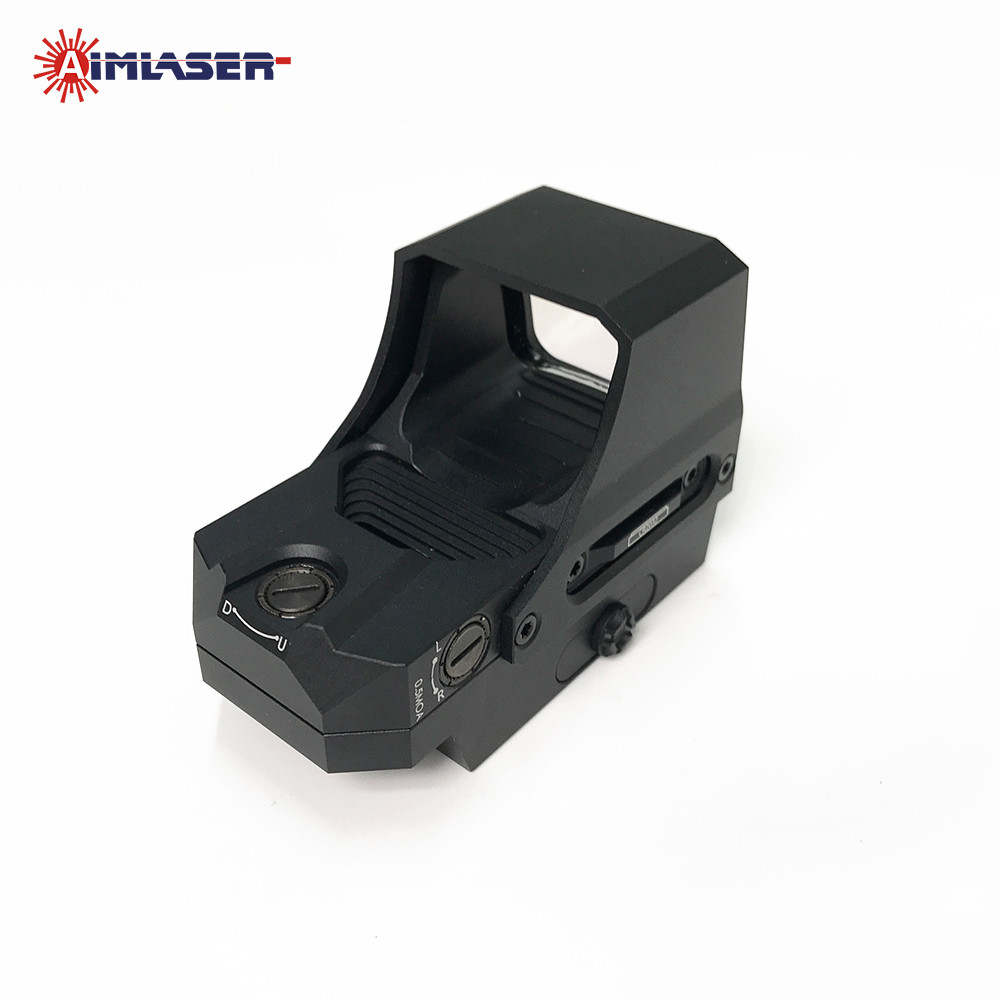

AM-R1 Open Rifle Red Dot Sight
AM-R1 Rifle Red Dot Sight
The AM-R1 Rifle Red Dot Sight is a rugged open-type optic designed for fast target acquisition and reliable performance on rifle platforms. Featuring a large 32×23 mm viewing window and a parallax-free optical system, it delivers a clear and intuitive sight picture for dynamic shooting environments.
Machined from 7075-T6 aluminum alloy with full CNC processing, the AM-R1 offers excellent durability, IP67 waterproof protection, and 1000G shock resistance. Multiple reticle options, adjustable brightness including night vision compatibility, and precise 0.5 MOA adjustments make it suitable for tactical, training, and professional use.
Key Features
-
7075-T6 Aluminum CNC Housing
Full CNC-machined aerospace-grade aluminum construction ensures exceptional strength, stability, and long-term durability. -
Wide Viewing Window
Large 32×23 mm open sight window provides an expansive field of view for fast and intuitive target acquisition. -
Multi-Reticle System
Selectable Red Dot / Red Circle / Dot & Circle reticles adapt to different shooting preferences and mission requirements. -
Advanced Optical Coating Options
Available with silver-coated lenses for high transmission and low chromatic aberration, or multi-layer red (rainbow) coating for enhanced reflection control under strong ambient light. -
Enhanced Glare & Light Control Design
Reinforced housing with extended rear shield reduces rear light interference and improves focus on the target. -
Precision Adjustment System
0.5 MOA click value with ±40 MOA elevation and windage range ensures accurate zeroing and repeatability. -
Duty-Rated Reliability
IP67 waterproof and dustproof, combined with 1000G shock resistance, supports reliable operation in harsh and unpredictable environments.
Specifications
|
ITEM |
PARAMETERS |
|
Product Name |
AM-R1 Rifle Open Red Dot Sight Scope |
|
Magnification |
1X |
|
Sight Window |
32x23mm |
|
Reticle Patterns |
Red Dot/Red Circle/Red Dot & Circle |
|
Battery Life |
≥10000Hrs (Medium Brightness in Continuous Work) |
|
Battery Power Check |
Manually (PATENT) |
|
Battery |
1xCR1632 |
|
Brightness Settings |
9 Levels for Day Time & 2 Levels for Night Vision |
|
Low Power Indication |
Reticle Flashes |
|
Material |
Aviation Aluminum Alloy 7075 in Full CNC Cutting |
|
Click Adjustment Range |
±40MOA (Elevation & Windage) |
|
Click Value |
0.5MOA |
|
Installation |
Picatinny Mount |
|
Dimension (L x W x H) |
80x40x50mm/80x40x60mm |
|
Color |
Black in Hard Anodization |
|
Weight |
190g/220g |
|
IP Grade |
IP67 Waterproof and Dustproof |
| Shockproof | 1000G |
Package
We offer protective cases and can customize packaging upon request.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment: FedEx, DHL, UPS etc.
3) Delivery Time: 10 - 20 days after deposit payment.
4) FOB Shipping Port: Xi'an, China.
5) Warranty: One year.
Our Services
A. All products come with a one-year warranty.
B. Provide OEM & ODM services, support customized for your requirement.
C. Product conforms to FDA, IEC, and GB standards.
D. Strictly following ISO9001:2008 quality system.
E. Cooperates with Glock, SmartFirearms, and other famous brands.
F. Strong design and production capabilities.
