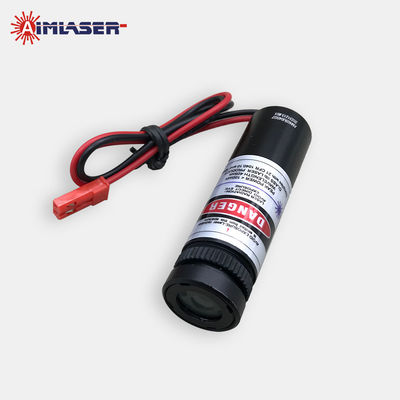

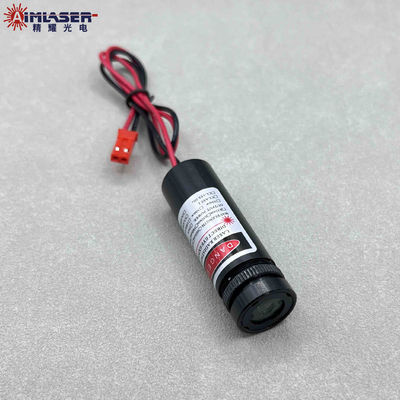

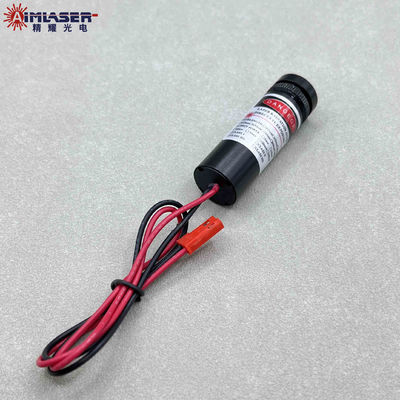

Powell Lens Uniform Line Laser Diode Module Focus Adjustable 405nm 30mW Violet Purple for Laser Profilometry 3D Scanning
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Powell Lens Uniform Line Laser Module | Wavelength And Output Power | 405nm ≤30.0mW |
|---|---|---|---|
| Line Width | ≤30um@150mm | Fan Angle | 60° |
| Divergence | 0.6mrad | Operating Voltage | 3-5V DC |
| Case Material | Aluminum Black Anodized (Insulation) | Dimensions | 14x55mm |
| Life Span | 10,000Hrs | Warranty | 1 Year |
Product Description
Powell Lens Uniform Line Laser Diode Module Focus Adjustable 405nm 20mW Violet Purple for Laser Profilometry 3D Scanning
Product Description
AIMLASER (Aiming Laser Technology Co., Ltd.) provides customized Uniform Line Laser Diode Modules with customizable wavelength, output power, line width, fan angle, input voltage, and size.
The uniform line laser modules use high-quality Powell lenses, the laser beam and energy are well-distributed. Our well-distributed line laser projectors feature compact size, narrow line width, high stability and reliability, long lifetime, and excellent performance under complex conditions. The laser intensity well-distributed module is the ideal laser source for Laser Profilometers, 3D Smart Cameras, Surface Defect Detection, Machine Vision Systems, Industrial Robotics, and 360° Pipeline Inspections.
The 405nm 30mW energy-uniformly distributed violet-purple line laser module subassembly comes with a collimated beam and focus adjustment.
Specifications
|
ITEMS |
PARAMENTERS |
|
Model Number |
Powell Lens Uniform Line Laser Module |
|
Wavelength |
405nm, 450nm, 520nm, 635nm, 650nm, 660nm, 780nm, 808nm, 830nm, 850nm |
|
Output Power |
5mW~400mW |
|
Line Width |
≤20um@60mm, ≤30um@80mm, ≤60um@150mm, ≤100um@300mm |
|
Fan Angle |
5°, 10°, 20°,30°, 45°, 60°, 75°, 90°, 110°, and 360° Circle |
| Linearity | >1000:1 or >5000:1 |
| Input Voltage | 5.0VDC/9.0VDC/12.0VDC/24.0VDC |
| Driver Mode | CW or TTL/Analogue Modulation |
| Dimensions | Φ12x35mm, Φ12x45mm, Φ16x55mm, Φ16x70mm, |
| Divergence | 0.2mrad |
| Straightness | ≤ 0.1% |
|
CDRH Class |
Class IIIb |
|
Circuit control |
Auto Constanct Current (ACC) |
|
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
|
Working Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Optics |
Powell Lens |
|
Case Material |
Brass or Aluminum Black Anodized (Insulation) |
|
Life Span |
10,000Hrs |
Features
1. Compact Size, Narrow Line Width, High Stability and Reliability.
2. Long Lifetime and Ultra-lower Noise Design.
3. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.
4. Conform to ROHS, FDA, IEC, SGS standards.
5. Provide One year warranty and customized solutions.
Applications
The 405nm 30mW Powell Lens Uniform Line Laser Diode Modules are used in:
|
● 3D Vision System |
● Laser 3D Scanning System |
|
● Laser Profilometer |
● Laser Measuring Profilometer |
|
● Laser Contour Scanner |
● Laser Scribe Positioning Machines |
|
● Machine Visual Products |
● Industrial Visual Measurement System |
|
● Machine Vision Cameras |
● Industrial Robot Visual Guidance System |
| ● Industrial Smart Cameras | ● Auto Equipment Visual Positioning System |
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Why Choose Us
A. Over 20 years laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standard.
F. Strong design and production capabilities, partners of famous brands.
