Coaxial Dual Wavelength Mini Laser Modules 520nm 650nm 1mW - 5mW Green And Red Laser Head

Place of Origin China
Brand Name AIMLASER
Certification FDA, IEC
Model Number AM650ML05G2
Minimum Order Quantity 1
Price USD $3-10
Packaging Details Anti-static bag, Carton
Delivery Time 5-15 days
Payment Terms T/T, Western Union, PayPal
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 405nm 520nm Coaxial Dual Beam Lasers Module Wavelength 405nm 520nm
Output Power 1-5.0mW Laser Type CW
Beam Size 6x12mm@10m And 10x22mm@20m Divergence 0.6mrad
Life Span 10,000 Hours Material Brass Housing, Optical Glass Lens
Power Modulation High/Low Power Switch Warranty ONE Year
Highlight

Coaxial Mini Laser Modules

,

Dual Wavelength Mini Laser Modules

,

Laser Diode 650nm 5mw

Leave a Message
Product Description

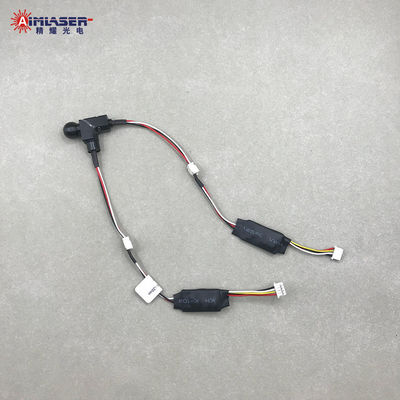

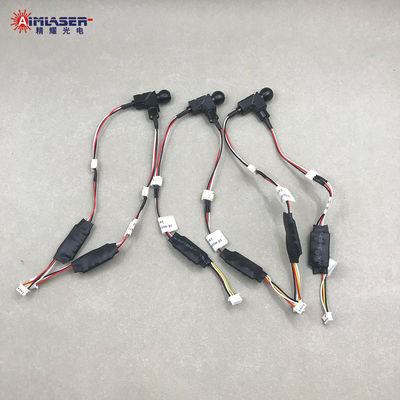

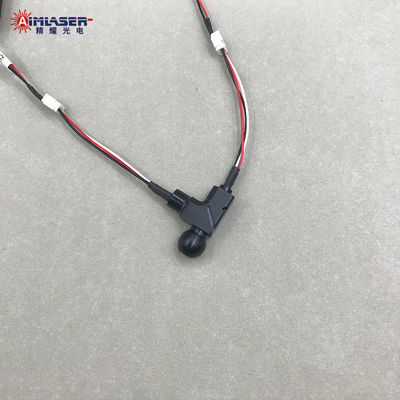

Coaxial Dual Wavelength Lasers Module 520nm 650nm 1mW-5mW Green and Red Laser Head



Product Description




AIMLASER produces Mini Coaxial Dual-Wavelength Laser Diode Modules with customizable options for output power, beam size, dimensions, and input voltage.



These dual-beam laser modules are compact, energy-efficient, cost-effective, and deliver high-quality beams. They comply with ROHS, FDA, IEC, and SGS standards. Equipped with high-precision, stable laser diodes and optical glass lenses, the modules provide clear and stable beams with over 1,000 hours of reliable operation. A 1-year warranty and fully customizable solutions are available.



The 520nm 650nm green and red laser light combo modules with collimated beams are ideal for tactical gun laser sights, gun laser grips, military laser aiming devices, barcode scanners, miniature laser tools, and precision instruments for positioning, alignment, and scanning applications.

Coaxial Dual Wavelength Lasers Module 520nm 650nm 1mW-5mW Green and Red Laser HeadCoaxial Dual Wavelength Lasers Module 520nm 650nm 1mW-5mW Green and Red Laser Head

Specifications




ITEMS

PARAMENTERS

Model Number

Green and Red Dual Beam Laser Module

Wavelength and Output Power

520nm 1.0mW-5.0mW and 650nm 1.0mW-5.0mW

Laser Mode

CW

Output Aperture

Dia. 3.0mm

Beam Size

6x12mm@10m and 10x22mm@20m

Divergence

0.6mrad

Optics

Optical Glass Lens

Operating Current

520nm<160mA and 650nm <50mA

Operating Voltage

3V DC (1pc CR123A)

CDRH Class

Class IIIa

Circuit control

Auto Power Control (APC)

Power Modulation

High/Low Power Switch

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 80℃

Dimensions

Customized

Housing Material

Brass and Insulated Anodized Aluminum

Life Span

10,000Hrs

Features




1. Compact size, Low cost, Lightweight, Low consumption.

2. Good quality beam, long lifetime, high precision and stability.

3. Conform to ROHS, FDA, IEC, SGS standards.

4. Provide One year warranty and customized solutions.



Applications




Gun and firearms laser aiming devices

Pistols, rifles, shotguns tactical laser sights and laser grips

Mininature laser equipment etc.



Trade Terms




1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China



Why Choose Us




A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

G. All products undergo internal testing before shipping
