AM-H2S True Holographic Sight with Multiple Reticle Options and 4-Point BDC Reticle for AR Platforms
Product Details
| Product Name | AM-H2S Holographic Sight | Reticle Patterns | 4-Point BDC |
|---|---|---|---|
| Material | Aluminum Alloy 6061 | Brightness Adjustment | 20 Levels For Day Time & 10 Levels For Night Vision |
| Click Adjustment Range | 0.7MOA | Battery And Life | 1x CR123A, 10000Hrs |
| IP Grade | IP67/68 Grade Waterproof And Dustproof | Shockproof | 1200G Shockproof |
| Warranty | 1 Year | ||
| Highlight | Holographic Red Dot Sight Parallax Free,Hunting Holographic Red Dot Sight,Tactical Red Dot Sight Parallax Free |
||
Product Description

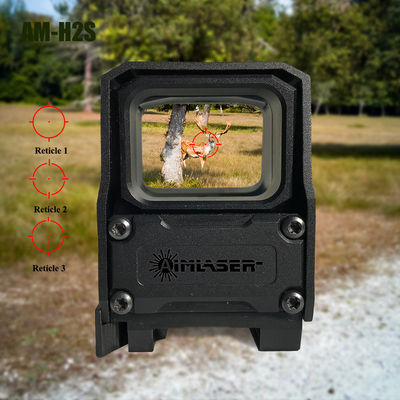

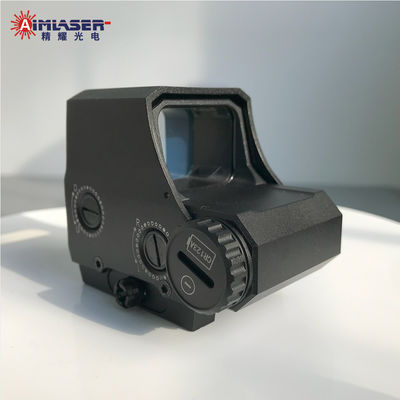

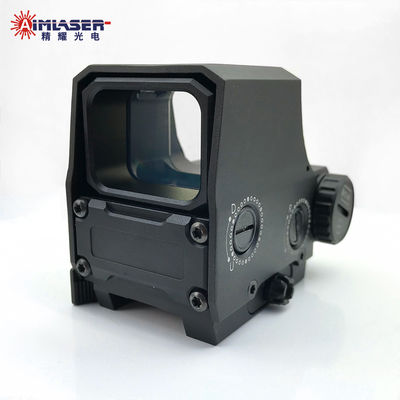

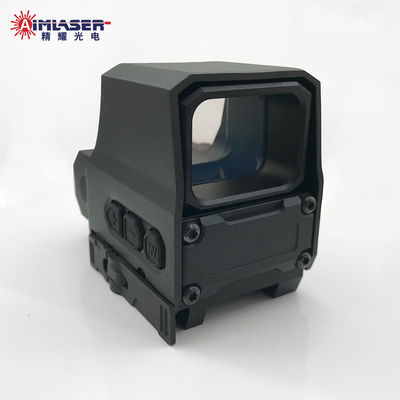

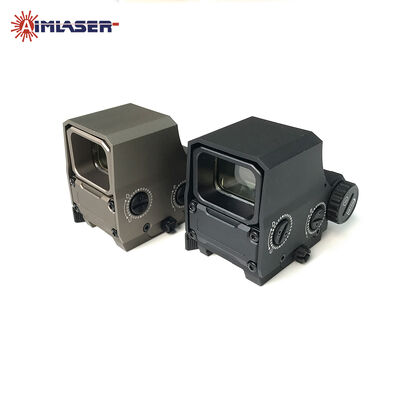

AM-H2S Holographic Sight
The AM-H2S Holographic Sight is a compact and rugged holographic sight designed for tactical shooting, hunting, and precision aiming applications. It offers multiple reticle options for different firearms and shooting requirements, including a specially designed 4-Point BDC Reticle for AR platforms.
The AR BDC reticle is optimized for 5.56 NATO / .223 (77 gr, approximately 2,750 fps, 16" barrel), with intuitive holdover references at 50, 400, 500, and 600 yards. An optional 7.62×39mm 4-dot BDC reticle is also available for AK platforms, with holdover references at 0, 300, 400, and 500 m.
With motion-activated wake-up, automatic shut-off, night vision compatibility, a large viewing window, and a rugged 6061 aluminum housing, the AM-H2S delivers fast target acquisition and reliable performance in demanding environments. OEM/ODM customization is available for reticles, appearance, logos, packaging, and product configurations.
.
Features
-
Multiple Reticle Options
Various reticle configurations are available for different firearms, ammunition, and shooting applications.
-

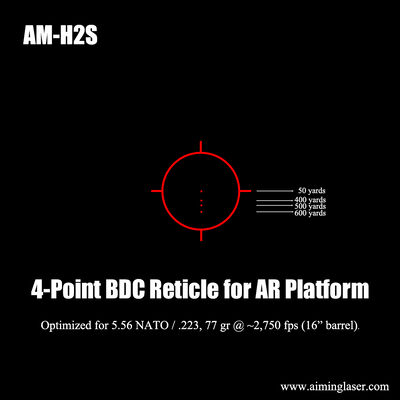

4-Point BDC Reticle for AR Platforms
Optimized for 5.56 NATO / .223, with practical holdover references at 50 / 400 / 500 / 600 yards.
-
Optional AK BDC Reticle
A dedicated 7.62×39mm 4-dot BDC reticle is available for AK platforms, with 0 / 300 / 400 / 500 m holdover references.
-
Motion-Activated Wake-Up & Auto Shut-Off
Automatically activates when movement is detected and shuts off when inactive, helping extend battery life to up to 1,000 hours at medium brightness.
-
Daylight & Night Vision Compatible
Provides 20 daylight brightness levels and 10 night-vision brightness levels, allowing the reticle to adapt to different lighting conditions.
-
Rugged Tactical Construction
CNC-machined from 6061 aerospace aluminum alloy, with 1200G shock resistance and IP67/IP68 waterproof protection for reliable operation in demanding environments.
-
OEM/ODM Customization
Customized reticles, housing design, logos, packaging, and product configurations are available to meet different brand and application requirements.
Specifications
| Optical performance | Magnification | 1X |
| Window size | ≥31mm×22mm | |
| Reticle Type | 4-Point BDC | |
| Parallax | ≤2MOA | |
| Laser Wavelength | 650nm | |
| Electrical Performance | Battery | CR123A |
| Continuous Operating Time | ≥1000 hours (at medium brightness) | |
| Brightness Levels |
20 levels for daytime 10 levels for night vision |
|
| Low Battery Warning | Reticle Flashes | |
| Motion Wake-up | Enable | |
| Mechanical Parameters | Material | Aerospace aluminum 6061/7075 |
| Processing Method | CNC cutting | |
| Surface Treatment | Black anodization | |
| Click Adjustment Range | ±40MOA (elevation, windage) | |
| Click Adjustment Accuracy | 0.7MOA | |
| Mounting Method | Picatinny rail | |
| Dimensions | ≤75mm×54mm×62mm | |
| Optical Baseline | 38mm | |
| Weight | 240g(excluding battery) | |
| Environmental Parameters | Operating Temperature | -40℃~+55℃ |
| Storage Temperature | -45℃~+60℃ | |
| Shock Resistance | 1200G | |
| Waterproof Rating | IP67/68 |
What is Holographic Sight
A holographic sight is an advanced optical aiming device that uses laser-based holographic technology to project a reticle onto a viewing window. Unlike traditional red dot sights, the holographic reticle is designed to remain clear and consistent during aiming, allowing for rapid target acquisition and accurate shooting.
With advantages including a wide field of view, parallax-free aiming, and fast target engagement, holographic sights are widely used in tactical shooting, hunting, competition, and professional applications.
Package
Accessories: Allen wrench, flathead screwdriver, battery, user manual, packaging box.
Trade Terms
1) Payment: T/T, PayPal, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 15 - 20 days after deposit payment.
4) FOB Shipping Port: Xi'an, China.
5) Warranty: One year.
Our Services
A. All products come with a one year warranty.
B. Provide OEM & ODM services, support customized for your requirement.
C. Product conforms to FDA, IEC and GB standard.
D. Strictly following ISO9001:2008 quality system.
E. Cooperates with many famous brands.
F. Strong design and production capabilities.
